HySecure Network Configuration

Go to Serial console and login with consoleadmin

Username : consoleadmin

Password : adminconsole

Follow the steps mentioned below.

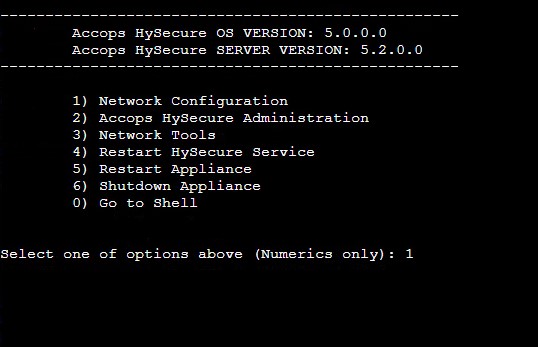

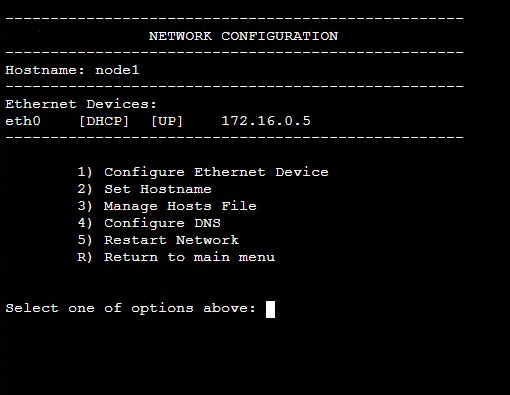

Step 1: Do Network Configuration by selecting 1

Step 2: Select the Ethernet 0 by selecting 0

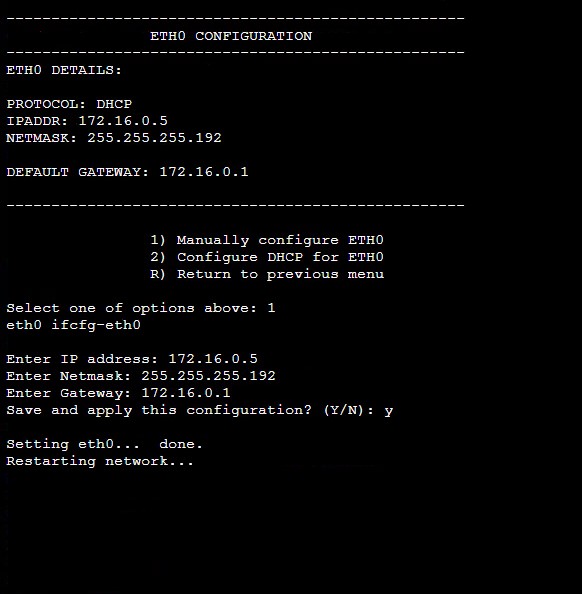

Step 3: Select Manually Configure Ethernet 0 and give static IP details

Step 4: Reboot the Machine.

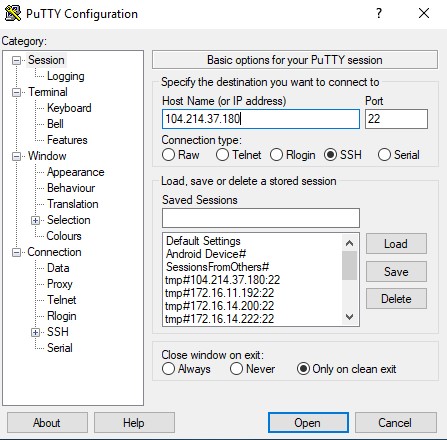

Step 5: Take putty on public ip of Machine

Step 6: Login with "vpnsadmin"

Special Note: This is admin user and customer will not have access to advance configurations like below

a. HA Configuration
b. SSH Access
c. IP Configuration for the HySecure nodes

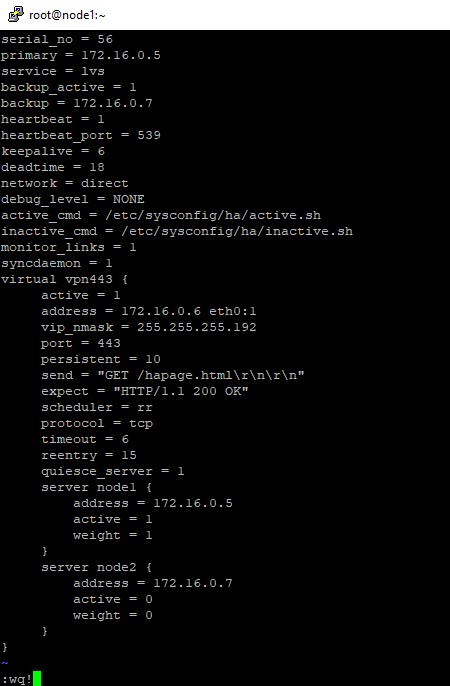

Step 7: Go and edit below location

a. vi /etc/sysconfig/ha/lvs.cf
b. Change primary, secondary and virtual IPs

Step 8: Go to below location and change Ips

a. vi /home/fes/fescommon/dbinfo.xml

Step 9: Go and edit this location ; vi /etc/hosts. Change Ips and give FQDN as hostname. Also add public ip

Step 10: Reboot -f

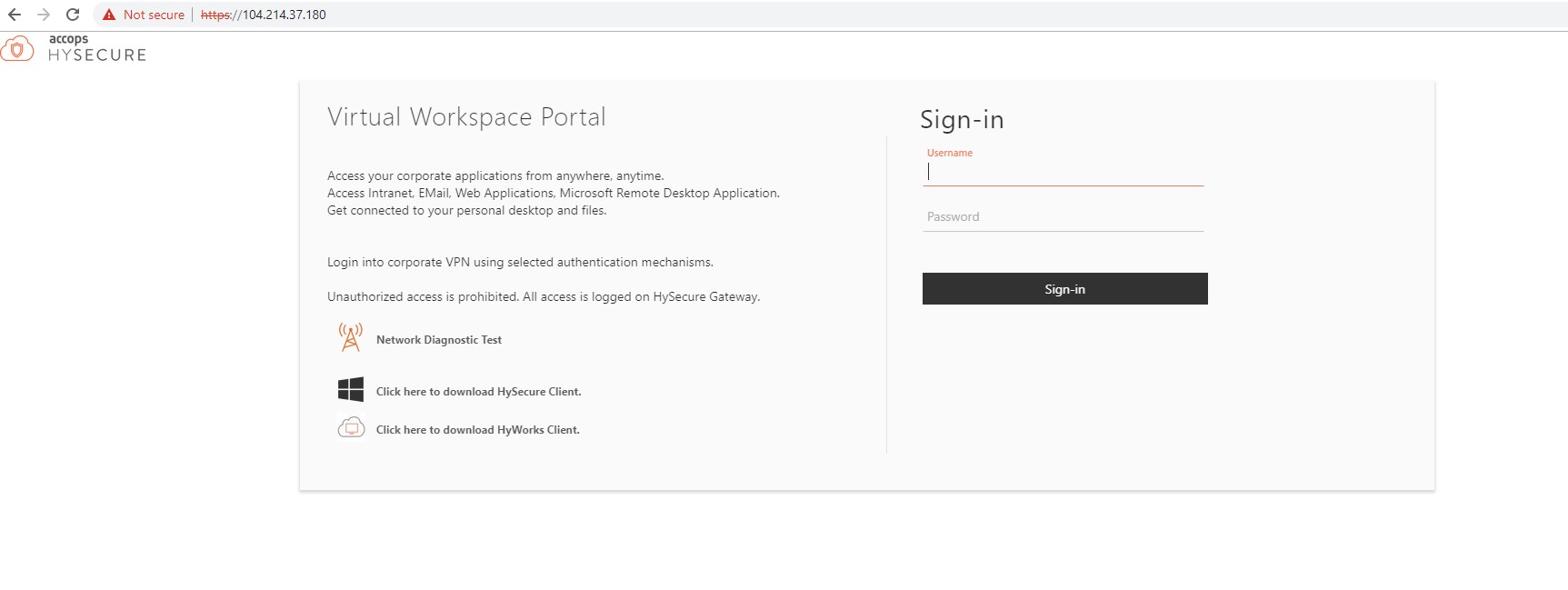

Step 11: Go to browser: https://publicip address of Hysecure Server.

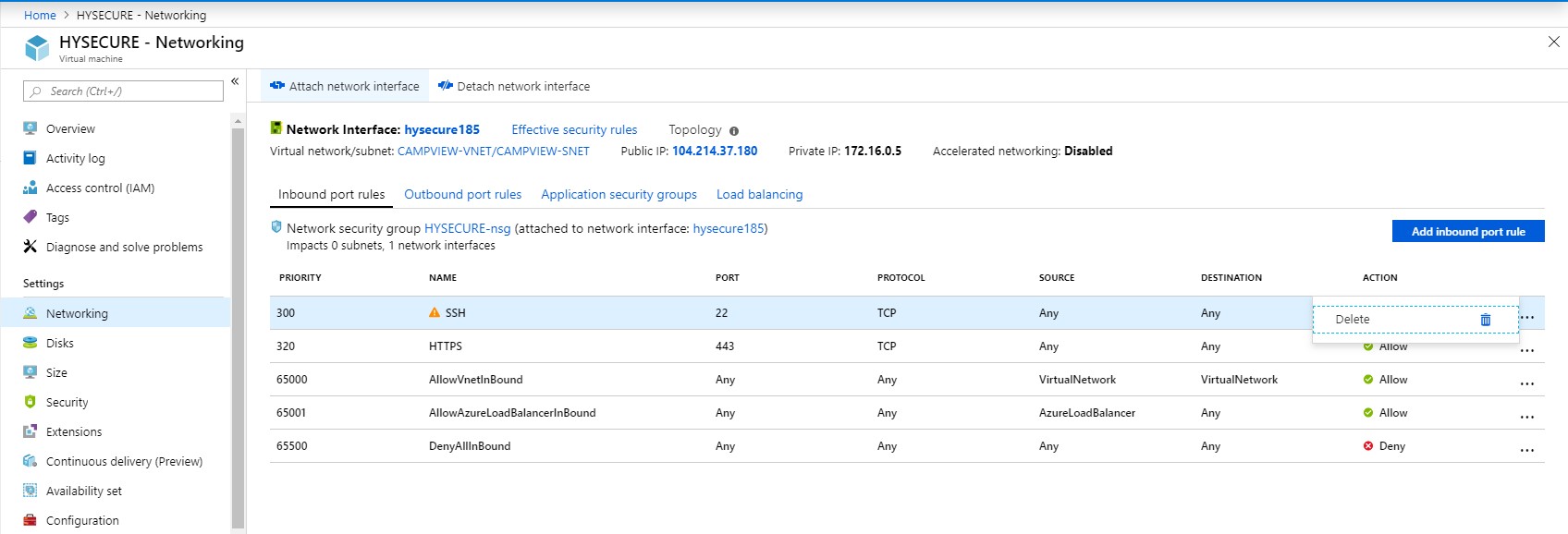

Step 12: Once you are able to access the Web page then Please go ahead and remove the ssh access

Step 13: go to browser: https://publicip a. If Virtual Workspace Portal is not visible, check if all services on HySecure machine is running or not

Step 14: For access from HySecure Client

a. Enroll SSL Certificate
b. Default SO Account
    - Passphrase : PHLKNG7G8TMLK7FH
    - Name : Accops Support
