HySecure Domain
Overview
Administrator can create multiple HySecure domain and each domain should have only one authentication domain. If administrator want to enable End Point Security then here administrator needs to enable End Point Security option.
For Configuration of HySecure domain first administrator needs to configure active directory server in authentication server option. Then needs to create authentication domain and in this domain administrator needs to specify the AD server. After this configuration user can create HySecure domain.
To get the list of Domain created and eventually create Hysecure domain, perform the following steps:
- Open the Management console and expand ACCESS MANAGEMENT
- Select Hysecure Domain from the sub menu
- All the created Domain will be visible on this page in a tabular manner with the following information of each Domain:
Domain Details
| # | Field | Description |
|---|---|---|
| 1 | Domain Name | Identifier of the realm. "*" represents the default domain. Default domain cannot be deleted. |
| 2 | Authentication Domain Name | Authentication domain linked with respective HySecure domain. |
| 3 | EPS status | EPS Status It shows whether EPS is enabled or disabled for the realm. |
Adding HySecure Domain

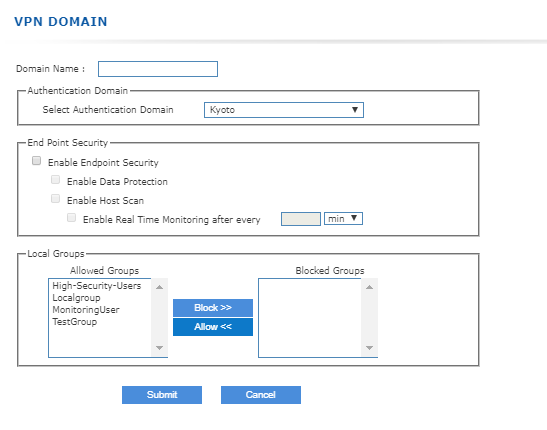

On the Domain Details page, click on the Add button to create a new HySecure Domain and provide the following information and click on Submit button.
Domain Name: Domain Identifier
Authentication Domain
| # | Field | Description |
|---|---|---|
| 1 | Select Authentication Domain | Select Authentication domain to link with HySecure domain. |
End Point Security
| # | Field | Description |
|---|---|---|
| 1 | Enable Endpoint Security | Enable Endpoint Security for remote users. If Endpoint Security feature is disabled in license, then Endpoint Security cannot be enabled. |
| 2 | Enable Data Protection | Currently this option is disabled. In future this option will control the data protection features on endpoints. |
| 3 | Enable Host Scan | Currently always enabled. In future, it would be possible to enable/disable this feature. |
| 4 | Enable Real Time Monitoring after every | Currently this feature is disabled. In future, this option will enable HySecure to re-evaluate endpoints after specified interval of time. |
Local Groups
| # | Field | Description |
|---|---|---|
| 1 | Allowed Groups | The User Groups from local database which are allowed to login into this Domain. |
| 2 | Blocked Groups | The User Groups from local database which are blocked to login into this Domain. |
Modifying HySecure Domain
On the Domain Details page, select a Domain whose details are to be modified and click on the Modify button. using the VPN Domain window, Modify the details as appropriate and click on Submit button for the changes to take effect.
Deleting HySecure Domain
On the Domain Details page, select the Domain which need to be deleted and click on the Delete button. On confirmation, the Domain will be deleted.
