Monitoring Cluster Status
Cluster status can be checked from two pages on HySecure management console
- Dashboard
- "Status" screen under "High Availability" section

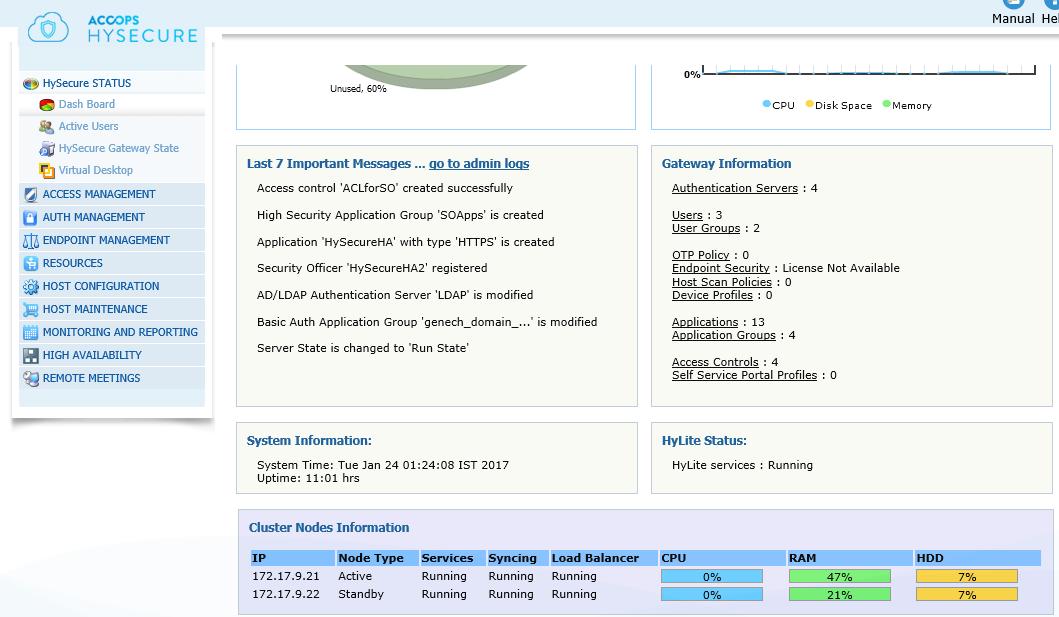

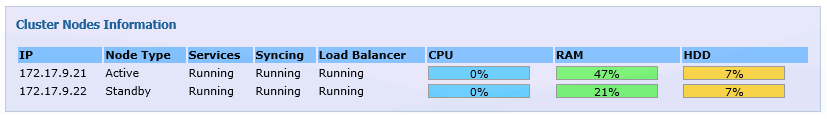

Dashboard
| FIELD | DESCRIPTION |
|---|---|
| IP | IP Address of Cluster Manager Nodes |
| NODE TYPE | Status of the added nodes |
| SERVICES | HySecure service status |
| SYNCING | Data sync service status |
| LOAD BALANCER | Load balancer service status |
| CPU | CPU utilized on a node |
| RAM | RAM utilized on a node |
| HDD | Hard disk space utilized on a node |
HySecure Logs
All the standard logging of HySecure Gateway is seamlessly available across both the cluster manager nodes. Administrator can login into the HySecure Management Console and find all the logs created by all the nodes in the cluster. All the nodes in the cluster sends their log data to the Active Cluster Manager node in the cluster. The Active Cluster Manager writes the log to its log database as well as sends the same log entry to the standby Cluster Manager. If the standby cluster Manage node is not available, it will not receive the logs for that duration.
