Upgrade Standby HySecure Cluster Manager Node

1. Connect to Standby HySecure Cluster Manager node that you want to upgrade as Security Officer.

   Note

   Do not Virtual IP address to connect

2. Open Management Console.

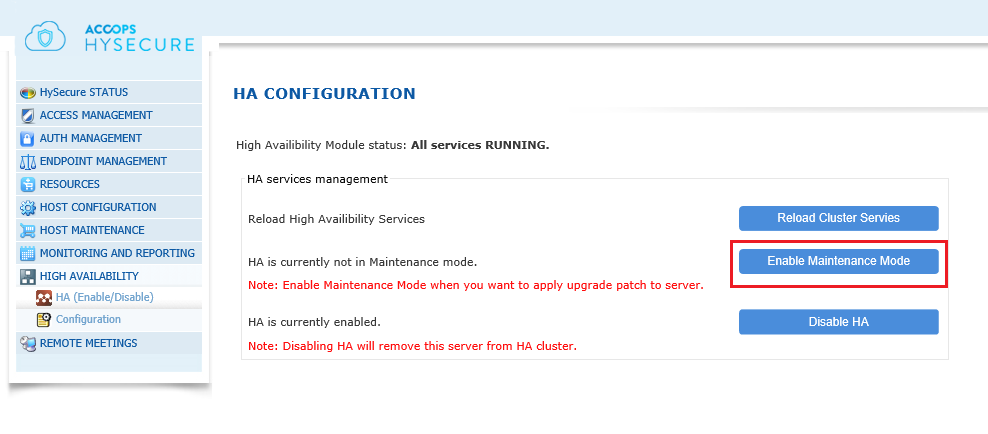

3. Go to HA Configuration > Configuration and enable Maintenance Mode. Once the Maintenance mode is enabled, this gateway node not be part of the cluster and will not show any cluster related status.

   Note

   The High Availability Module Status should be **HA is in maintenance mode. All syncing services stopped properly. Maintenance/Upgrade activity can be performed now.

4. Go to HySecure STATUS > HySecure Gateway State and change the HySecure gateway in Configuration Mode.
   Once the mode is changed all the active user connections to this gateway node will be disconnected.

5. Go to Host Maintenance > Upgrade Firmware and upload the HySecure Upgrade patch file. Depending on the network bandwidth between your PC and Gateway it may take some time to upload.
6. Once the file is uploaded, upgrade process starts automatically. Refresh the browser and check if the upgrade has completed.
7. Go to the Dashboard to confirm version number.
8. Keep the gateway in configuration and maintenance mode.
9. This node will become active after upgrading the dedicated HySecure Gateway nodes.
