Virtual Server

Add Virtual Server to use HySecure server as HTTPS reverse proxy server. Admin can create a unique DNS name and then create a virtual server for this DNS name. This will not require user to download the VPN java client modules.

Starting from 5035 release, all pre-boot configuration starting from first configuration page is moved to HTTPS based page. There is no server on port 80 anymore.

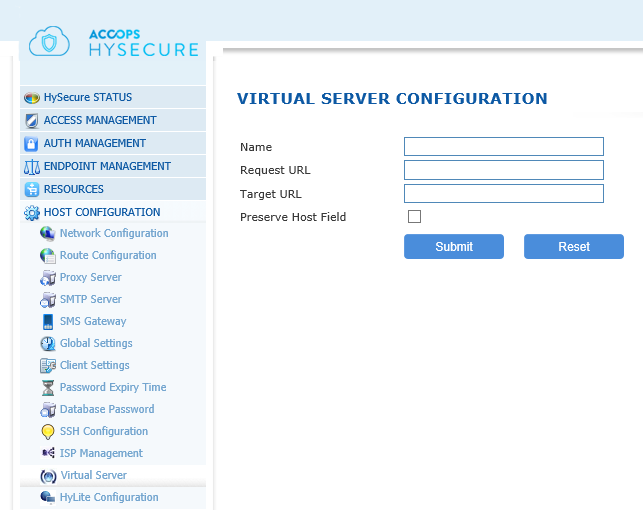

  1. Click Add to create the configuration.
  2. Give the service a Name.
  3. Specify the URL that the user will reference in the Request URL field. Use the format https://publicfqdn
  4. In the Target URL field specify the web server address that is the target. Use the format [http://webserver]{.underline} Note Both http and https are supported. Preserve Host Field - This field is used for incoming Host HTTP request header for proxy request. If enabled this option will pass the Host: line from the incoming request to the proxied host, instead of the hostname specified in the proxypass line.

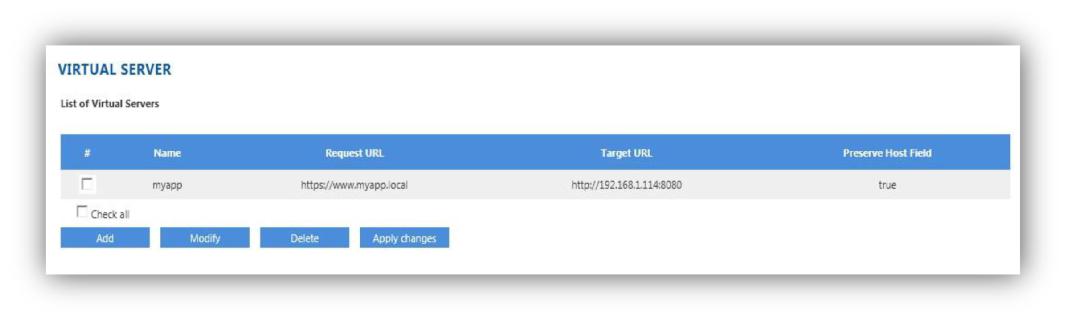

Example configuration:
