Service Path

Service path points HyWorks Controller Management Console to connect to HyWorks Controller service.

In some deployments, to distribute load between management console and controller service, these components can be installed. To get management console communicate to controller, service config can be used, where server1 (management console) can configured with host address of server2 (controller service). The configuration also requires some changes in HyWorks Management Console configuration, refer this section for more details.

Default Service Path

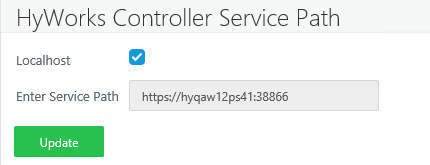

By default, Host Management > System > Service Path displays the currently configured HyWorks Controller service path.

Change Service Path

Follow below given steps if it is required to point HyWorks Controller Management console to some other than the default HyWorks Controller Service:

1. Go to Host Management > System > Service Path

2. Uncheck Localhost

3. Provide path of HyWorks Controller service with port number e.g. https://hostname_or_IP_of_Controller_service:port_number

4. Click Update

Current session will be logged out and administrator will be redirected to login page requiring administrator credentials for new HyWorks service.

Warning

While configuring HyWorks Controller Service path, if the management console fails to connect to new controller service then it will automatically reset to the last saved HyWorks Controller Service Path.
