IP Address Pool

Overview

App Tunnel IP Address Pool

When users access a published application through the HySecure Gateway, an IP Address Pool assigns them a unique IP address to avoid conflicts. This pool is configured for users in authorized User Groups by the Authorization Server in a HySecure Domain.

Users accessing the same application can be assigned different virtual IP addresses. Static IP addresses can be assigned from a pool to ensure consistent IP assignment across different login sessions.

Turbo Tunnel IP Address Pool

Turbo Tunnel is a new L3 tunneling mechanism that routes IP traffic from end-users to the corporate network using a UDP-based tunnel. It provides improved support for real-time applications like VOIP and graphics-heavy apps over VDI and better performance for VDI users.

Turbo tunnel can be activated for specific applications and users requiring reverse connections, which originate from the server side toward end users.

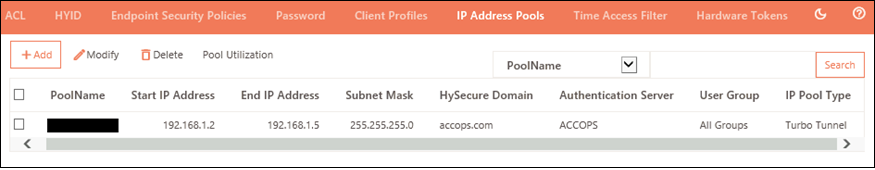

View IP Address Pools List

Log on to the Management Console.
Go to Policies > IP Address Pools.
The page lists all the Pools in a tabular manner with the following details:

Field	Description
Pool Name	Displays the IP Address Pool identifier.
Start IP Address	Displays the first IP Address of the configured IP Address Pool.
End IP Address	Displays the last IP Address of the configured IP Address Pool.
Subnet Mask	Displays the subnet mask of the IP Address Pool.
HySecure Domain	Displays the HySecure Domain for which the pool is being created.
Authentication Server	Displays the Authentication server through which the users would get authenticated and, in turn, be assigned IP from the configured pool.
User Group	Select the user group from the configured Authentication Server. Users in this group will be assigned the IP Address from the configured pool.
IP Pool Type	Displays the type of pool - App Tunnel or Turbo Tunnel.
VLAN ID	Displays the VLAN ID of the subnet for which the pool is being created.
Reuse IP Address	Displays the whether IP is reused or not.
Static Assignment	True indicates that the IP assignment to the user is permanent across different logins.

Search IP Address Pool

In case there are a large number of connected users, the administrator can filter or search for a particular user based on any one of the following fields:

Pool Name
Start IP Address
End IP Address
Subnet Mask
IP Pool Type
HySecure Domain
Authentication Server
User Group
VLAN ID

Select the field from the Search Filter drop-down list to filter the list. Input search values in the Search IP Address Pools box. Click Show to display the filtered list.

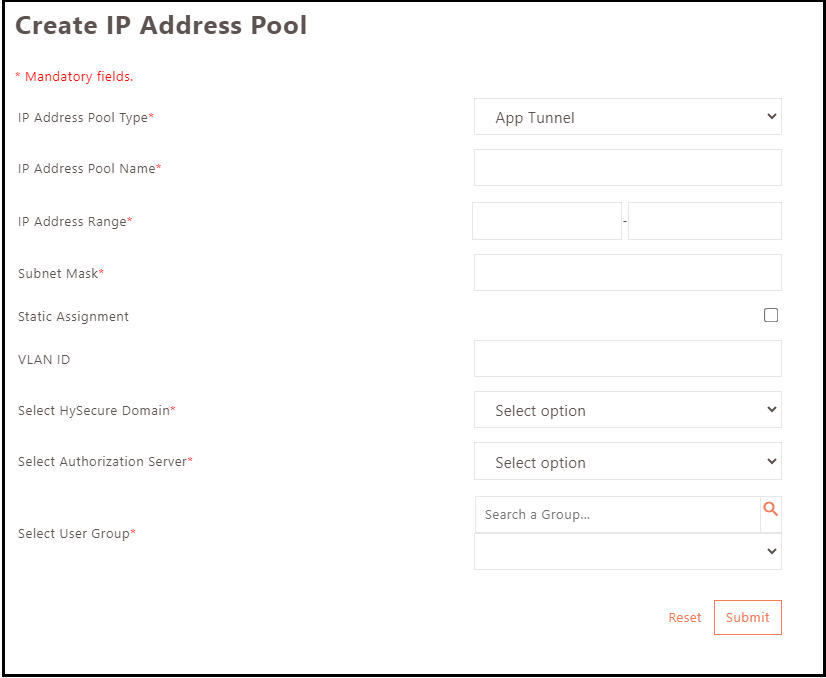

Add IP Address Pool

Log on to the Management Console.
Go to Policies > IP Address Pools > Add.

Field	Description
IP Address Pool Type	Select the pool type - App Tunnel or Turbo Tunnel.
IP Address Pool Name	Enter the IP Address pool identifier.
IP Address Range	Specify the first IP address and the last IP Address in the range.
Subnet Mask	Specify subnet mask for the range of IP addresses.
Static Assignment	Enable if the IP Address assignment to the user is expected to be permanent.
VLAN ID	Enter the VLAN ID of the subnet for which this pool is being created.
Interface Name	Interface identifier.
Masquerade (only for Turbo tunnel)	Select ON if the user's IP address is to be masqueraded.
Outgoing Interface name (only for Turbo tunnel)	Enter the interface name to use as the Masquerading user IP address.
Select Turbo interface (only for Turbo tunnel)	Select the interface through which the Turbo Tunnel will be established.
Select HySecure Domain	Select the HySecure Domain for which the pool is being created.
Select Authorization Server	Choose the authorization server to assign IP addresses from the configured pool to the selected users.
Select User Group	Select the user group to whom the IP Address pool needs to be assigned.

Delete IP Address Pool

Select the configured IP address pool to delete and click Delete. The selected pool will be deleted upon confirmation.

Pool Utilization

To view the usage details of an IP Address Pool, go to the IP Address Pools page and select the desired IP Address Pool entry. Then click on the Pool Utilization button. If an IP address from the subnet is being used, it will be indicated, along with the user who is currently utilizing it. The following information will be displayed in a tabular format:

Field	Description
Pool Type	Displays the selected pool type – Turbo Tunnel or App Tunnel.
Pool Name	Displays the IP Address pool identifier.
IP Address	Display the utilization information for each IP address in the configured range.
Subnet Mask	Displays the subnet mask of the IP address pool for which the utilization is shown.
VLAN ID	Displays the VLAN ID of the IP Address pool for which the utilization is shown.
Interface Name	For Turbo Tunnel pool type it displays the name of the interface linked with the IP address pool.
UserName	Displays the name of the user who has been assigned this specific IP address.
HySecure Domain	Displays the HySecure Domain configured in the IP Address pool for which pool utilization is displayed.
Authentication Server	Displays the authentication server configured in the IP address pool for which the pool utilization is displayed.
User Group	Displays the user group and pool utilization for the configured IP Address pool.
Status	Displays the availability of IP address for assignment. Unused: Indicates that the IP address is not assigned to any user yet. Available: Indicates a static IP address assigned to a user not logged in. Busy: Indicates that the IP address is assigned to a user who is logged in currently.

Search IP Address Pool Utilization

In the case of a large set of IP addresses, administrators can filter or search a user’s entry based on specific fields.

Pool Name
IP Address
Subnet Mask
VLAN ID
Status
UserName
HySecure Domain
Authentication Server
User Group

The Search Filter drop-down menu allows you to select the field to filter the list. You can then specify search values in the provided text box.
