KB003: Configure AD User Management Console Access

Article ID: KB003

Last Updated: June 21, 2025

Applies To: HySecure Gateway 7.1 and above

Category: User Management & Access Control

Overview

This guide explains how to grant HySecure Management Console access to Active Directory users. This feature eliminates the need for native certificate-based users and allows AD users to access the Management Console using any HTML5-supported browser from any device.

Prerequisites

• HySecure Gateway 7.1 or higher
• Active Directory integration is configured
• Security Officer or Administrator access to the HySecure Management Console
• Active Directory users available for role assignment

Available Roles

Role	Description	Capabilities
Security Officer	Highest privilege level	Full system access and configuration
Administrator	High privilege level	System management, excluding Security Officer functions
L1 Support User	Support level access	Limited troubleshooting and monitoring
Monitor	Read-only access	View-only access to system status and logs

Procedure

Step 1: Access Admin Users Configuration

1. Log in to Management Console

   • Log in to the HySecure Management Console as a Security Officer or Administrator.

2. Navigate to Admin Users

   • Go to Users > Admin Users.

   • Click Add.

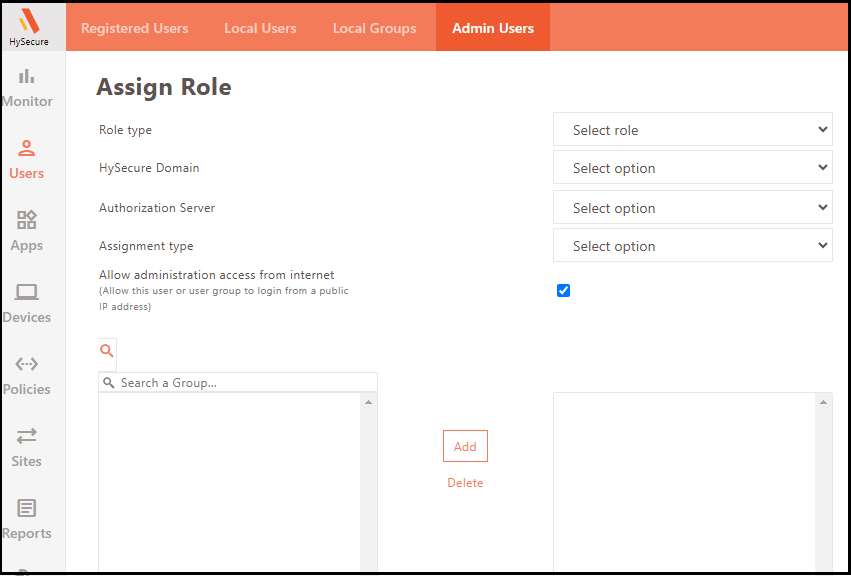

Step 2: Configure Role Assignment

1. Select Role

   • Choose one of the available roles:

     • Security Officer

     • Administrator

     • L1 Support User

     • Monitor

2. Configure Domain Settings

   • Select HySecure Domain.

   • Select Authorization Server (configured Active Directory).

3. Configure Internet Access (Optional)

   • Check or uncheck Allow administration access from internet based on security requirements.

4. Complete Assignment

   • Click Submit to save the configuration.



Step 3: User Authentication

After configuration, AD users can access the Management Console:

1. Browser Access

   • Open any HTML5-supported browser.

   • Navigate to the HySecure Management Console URL.

   • Use Active Directory credentials to log in.

2. No Certificate Required

   • No security certificate installation needed.

   • Direct authentication against Active Directory.

3. Client Based Login

   • Open the Workspace Windows Client.

   • Login with Client SSL certificate.

   • Enter the password.

   • Navigate to the HySecure Management Console as web application.

Important Notes

Access Restrictions

Who Can Grant Access:

• Only native Security Officers and Administrators can grant console access.

• Administrators cannot assign Security Officer role (higher privilege).

Configuration State Access:

• AD users have access to Management Console even in Configuration State.

• Low-security applications will not be visible during Configuration State.

Security Recommendations

Multi-Factor Authentication:

• Enable MFA for all AD users with Management Console access.

• Particularly important for high-privilege roles.

Regular Access Review:

• Periodically review assigned roles and access levels.

• Remove unnecessary access permissions.

• Monitor console access logs.

Verification

After configuration:

1. Test AD User Login

   • Have AD user attempt console login.

   • Verify role-appropriate access levels.

   • Confirm functionality works as expected.

2. Verify Role Permissions

   • Test specific functions available to assigned role.

   • Ensure restrictions are properly enforced.

3. Check Access Logs

   • Monitor console access logs.

   • Verify successful authentication events.

   • Confirm no unauthorized access attempts.

Troubleshooting

Common Issues:

AD User Cannot Login:

• Verify assigned role in Admin Users.

• Verify Active Directory connectivity.

• Check user account status in AD.

Role Permissions Not Working:

• Check role assignment configuration.

• Verify user is member of correct AD group.

Access Issues over Public Networks:

• Check Allow administration access from internet setting.

• Verify network connectivity and firewall rules.
