Installing the HySecure Gateway on Azure

Follow the step-by-step guide on how to install HySecure Gateway on the Azure platform.

Prerequisites

  • New or an Existing tenant in Azure.
  • Global Azure Admin Access.
    • Role: Owner

Steps to install HySecure Gateway

The following steps will guide you through the necessary actions to complete HySecure Deployment:

  1. Log into the Azure Portal:

  2. Navigate to Virtual machines:

    • Select Virtual machines from the Azure services section. You can also type Virtual machines in the search bar.
    • On the Virtual machines page, click on the + Create button and Select Azure virtual machines.

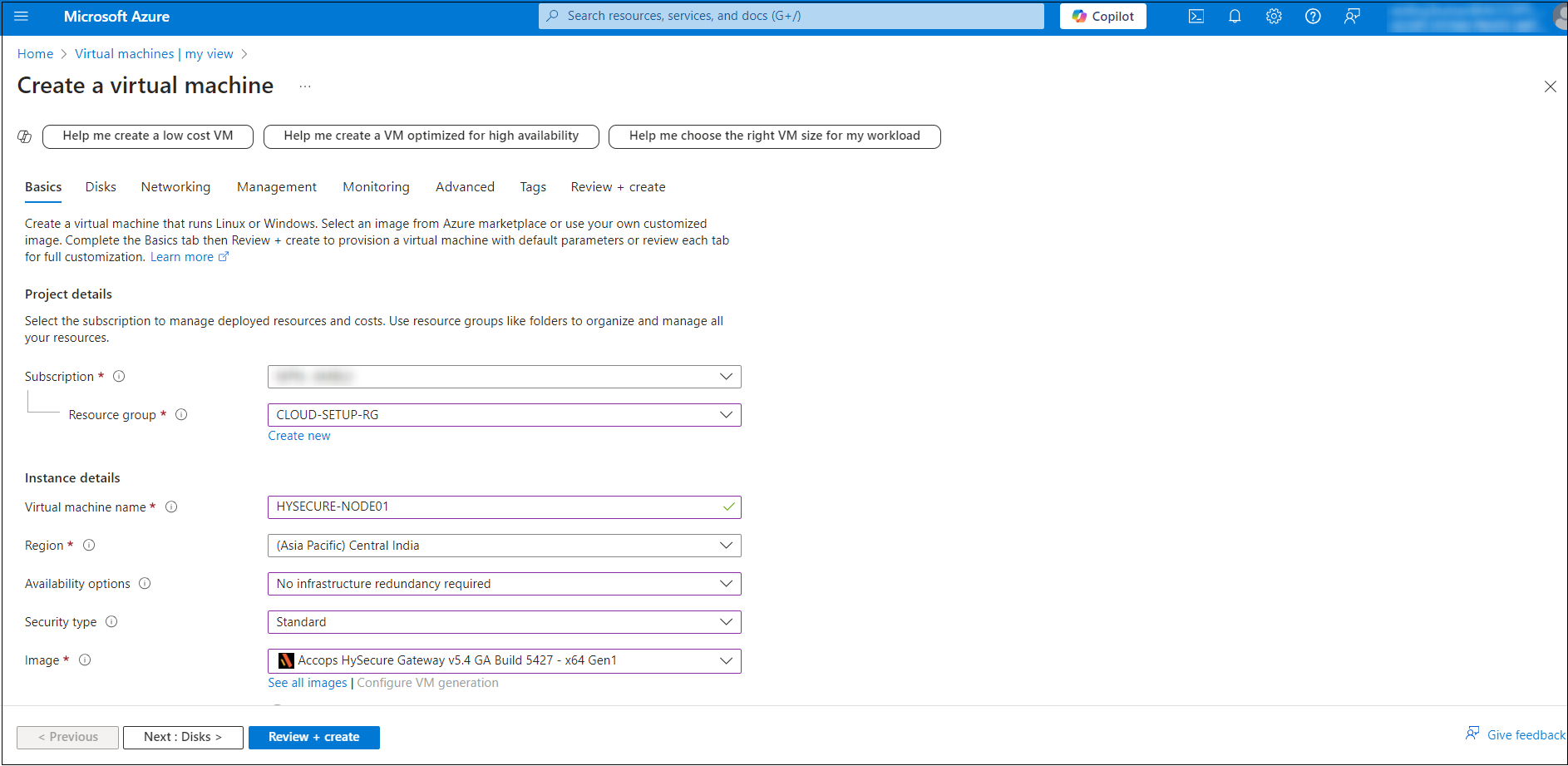

  3. Configure Basic Settings: In the Basics tab, configure the following Instance details:

    • Subscription: Select your Azure subscription.
    • Resource Group: Select an existing resource group or create a new one (e.g. CLOUD-SETUP-RG).
    • Virtual machine name: Name your VM (e.g. HYSECURE-NODE01).
    • Region: Select the location where your VM will be hosted (e.g. Central India).
    • Availability options: Select based on your need (e.g. No infrastructure redundancy required).
    • Image: Select the operating system image (e.g. Accops HySecure Gateway v5.4 GA Build 5427 - x64 Gen1).
    • Size: Select a VM size based on your workload requirements.

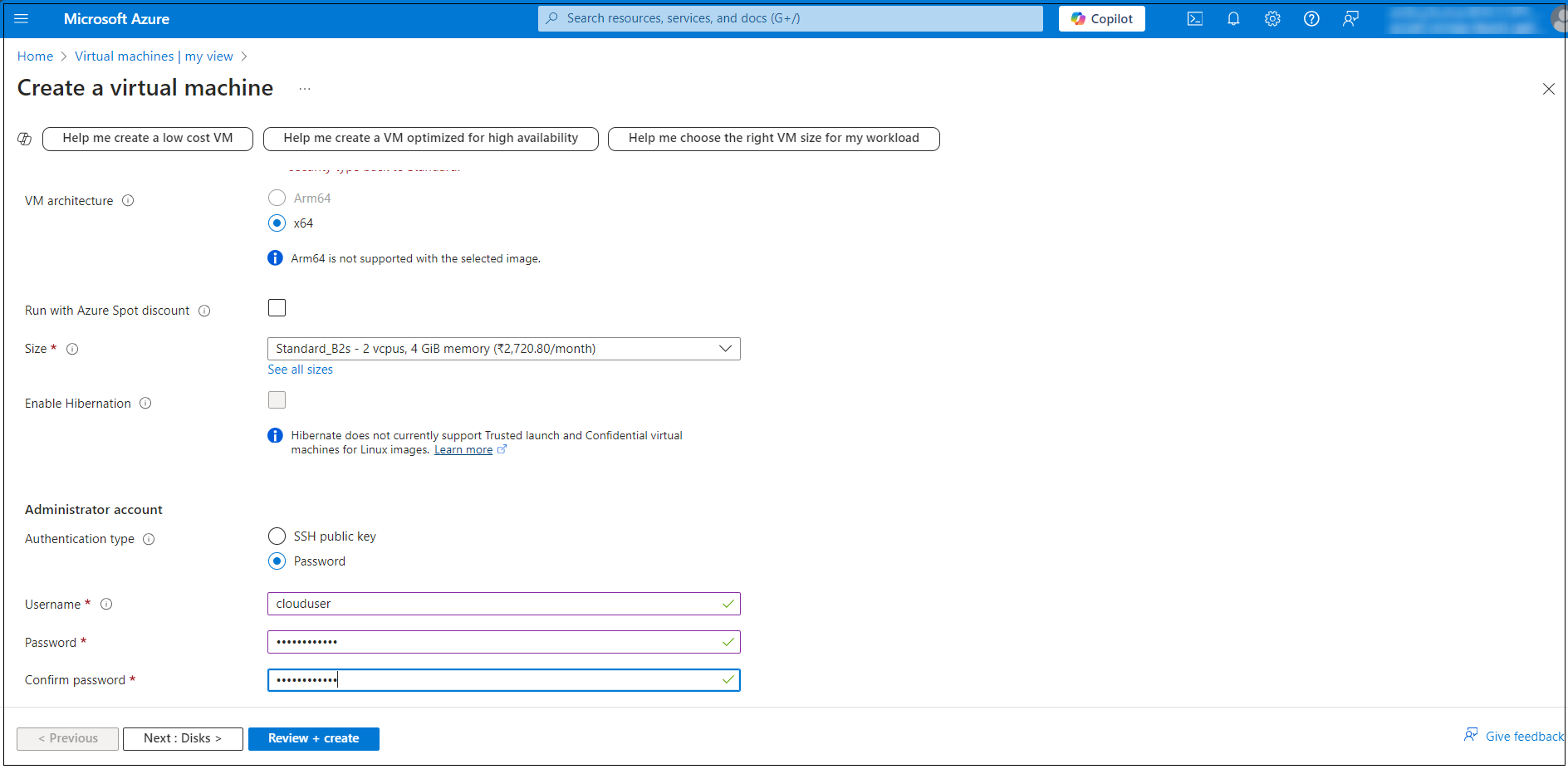

  4. Under the Administrator account, enter a username, such as cloud user and a password. The password must be at least 12 characters long.

  5. Configure Disk Settings: Navigate to the Disks tab, and select your OS disk type (e.g., Standard SSD, Premium SSD).

  6. Configure Networking: In the Networking tab, configure the following:

    • Virtual network: Select an existing network or create a new one.
    • Subnet: Select a subnet within the virtual network.
    • Public IP: Assign a public IP if you want external access.
    • NIC network security group (NSG): Set inbound/outbound rules to control the network access.

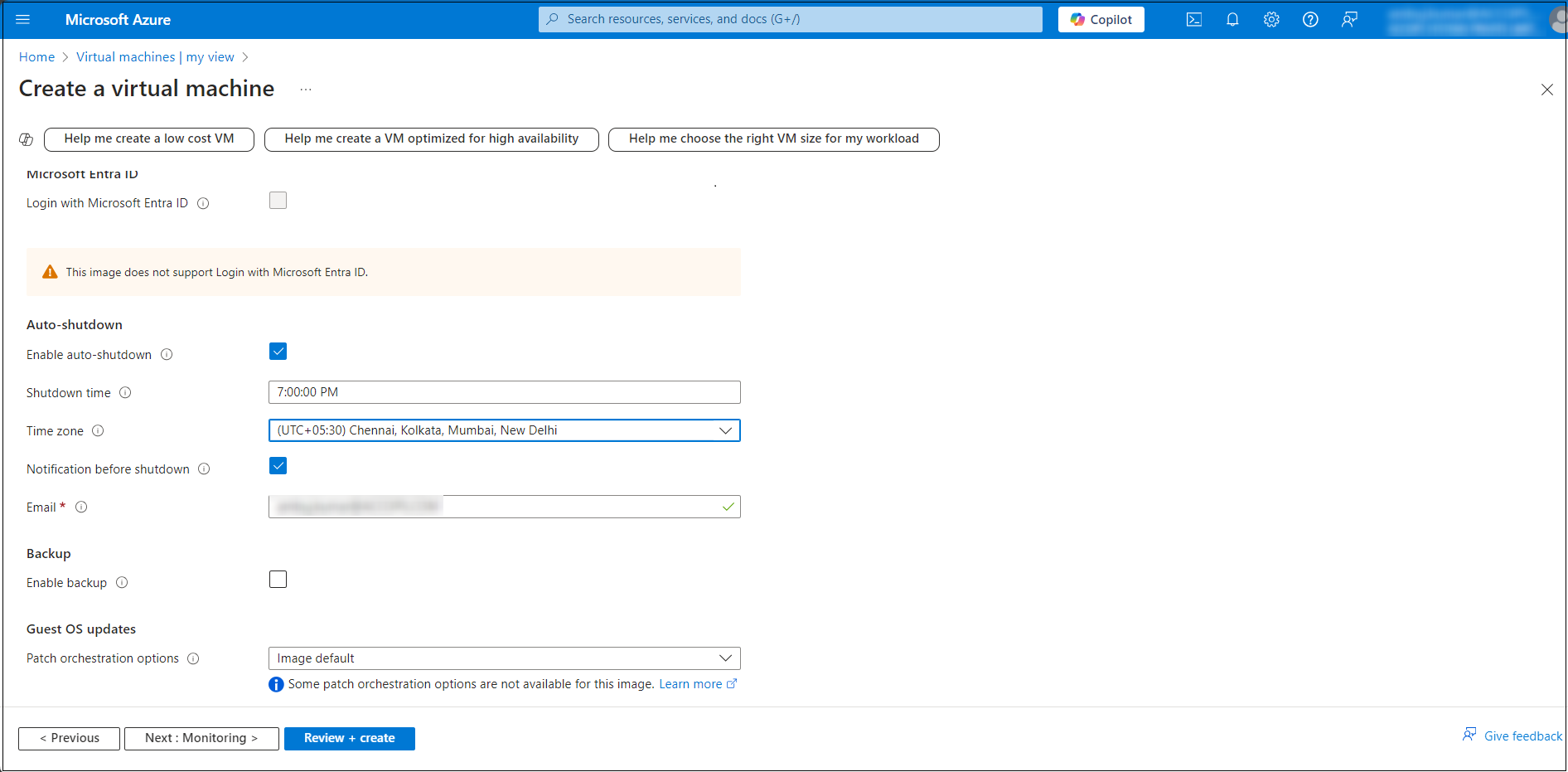

  7. In the Management tab, configure the additional options such as Auto-shutdown to set a specific time for automatically shutting down the VM.

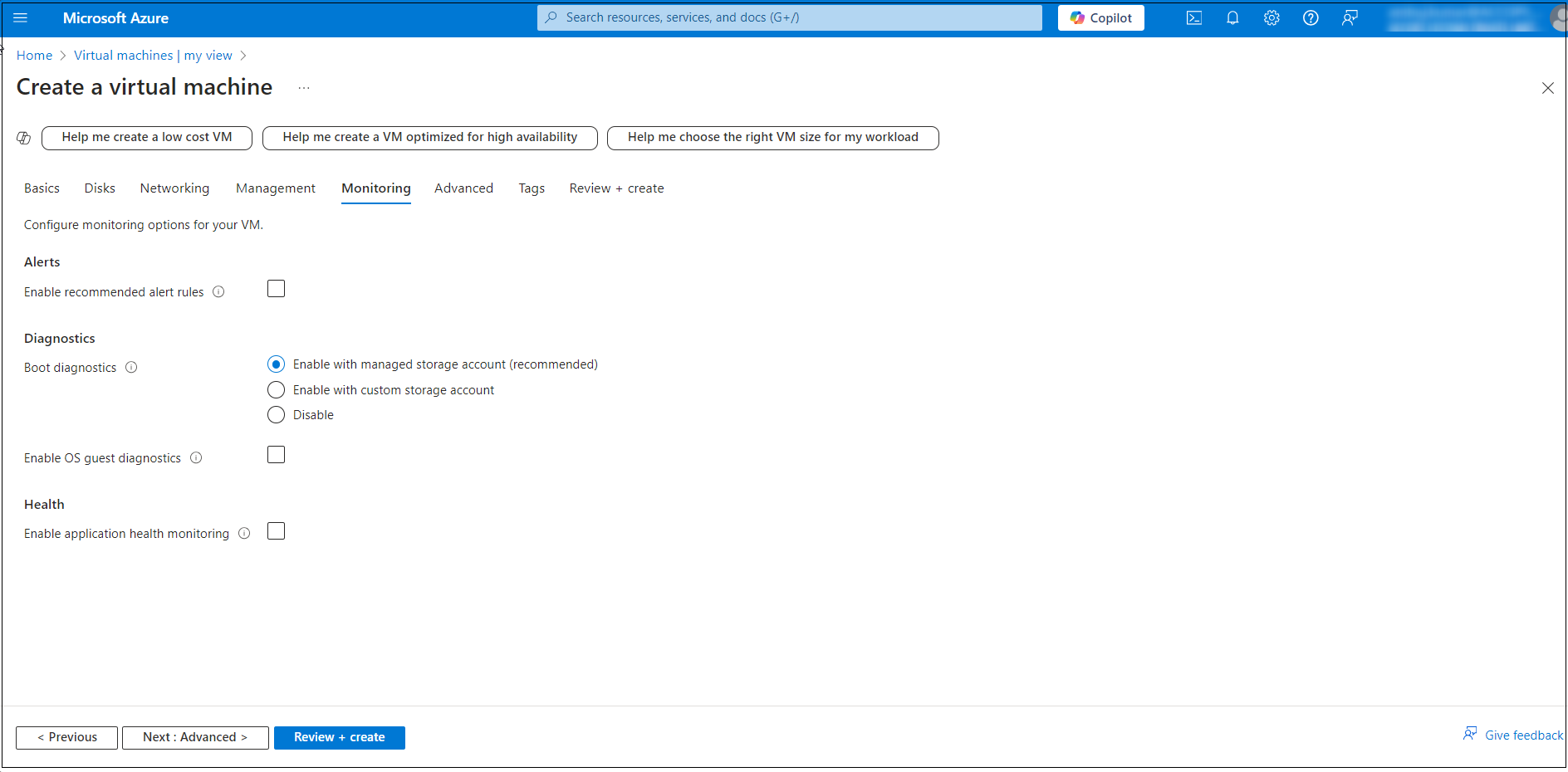

  8. In the Monitoring tab, Enable the diagnostics options for troubleshooting.

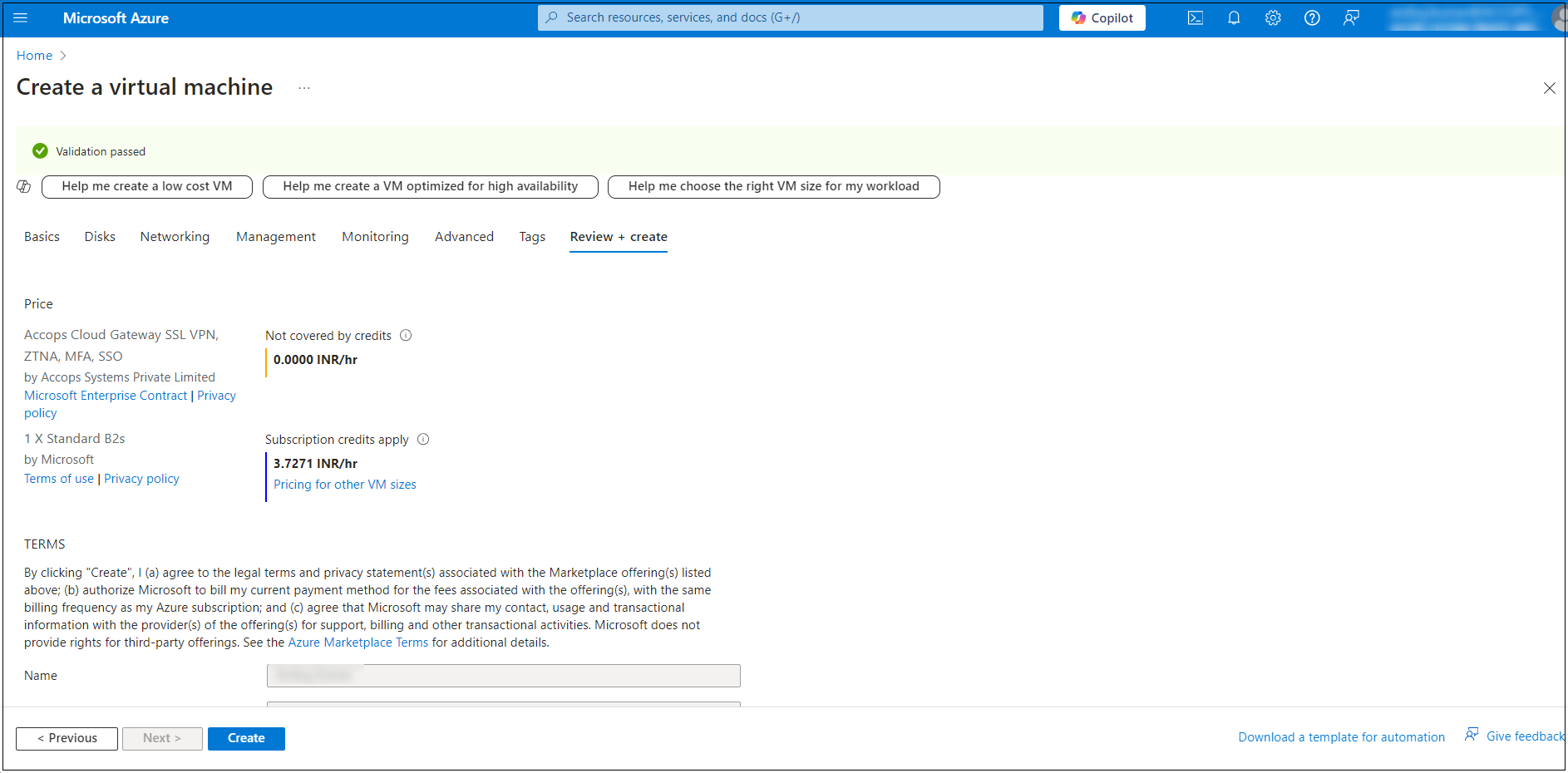

  9. Review and Create: Once all the settings are configured, click Review + create.

This completes the HySecure installation on Azure.

For the next step, here.
