Upgrade Dedicated Gateway Node

1. Connect to Dedicated HySecure gateway as Security Officer.

   Note

   Do not connect using a Virtual IP Address

2. Navigate to HA Configuration and put the HySecure node in maintenance mode by clicking Enable Maintenance Mode.

   Note

   After this step, this gateway node will become an inactive cluster node.

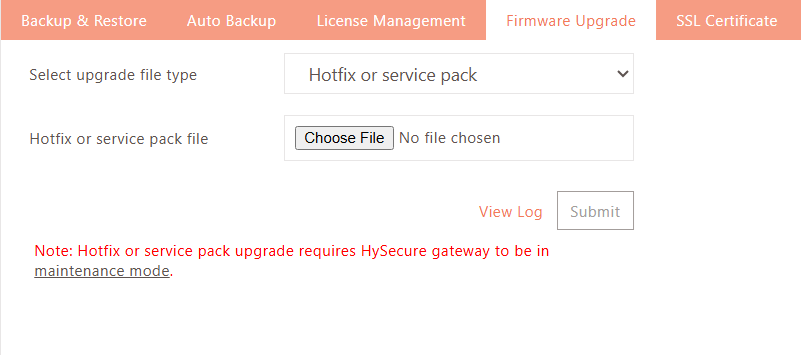

3. Navigate to HySecure STATUS > Upgrade Firmware and put the HySecure gateway in Configuration Mode. All active user connections to this gateway node will be disconnected.

4. Navigate to Host Maintenance > Upgrade Firmware and upload the HySecure Upgrade patch file. It may take some time to upload the upgrade patch based on network bandwidth between your PC and Gateway.
5. Once the upgrade file is uploaded, the upgrade will start automatically. Refresh the browser to verify if the upgrade is complete.
6. Check the Gateway version on the dashboard to confirm the upgrade.
7. Keep the gateway in configuration and maintenance mode.

Repeat the above steps for all Dedicated HySecure Gateway nodes.
