New Features in Accops Workspace macOS Client version 7.2.1.1043

VDI Lockout Support

This release introduces re-authentication enforcement for VDI sessions that are locked, idle, or where the endpoint operating system has been locked. It enhances session security by enforcing user re-authentication when a virtual desktop session becomes locked, the endpoint operating system is locked, or the client remains inactive for a configured period.

The feature helps prevent unauthorized access to active VDI sessions and ensures that users revalidate their identity before resuming access.

Key Benefits

Protects active VDI sessions from unauthorized access.
Enforces user identity verification after lock events.
Enhances compliance with organizational security policies.
Provides consistent security behavior across VDI and endpoint environments

Re-Authentication Functional Behavior

The client automatically transitions to a LOCKED state when any of the following events occur:

VDI Session Lock

The virtual desktop session is locked through the Cmdex virtual channel.

Endpoint Operating System Lock

The client detects that the local endpoint operating system has been locked.

Idle Timeout

The client remains inactive for a configured period and exceeds the administrator-defined idle timeout threshold.

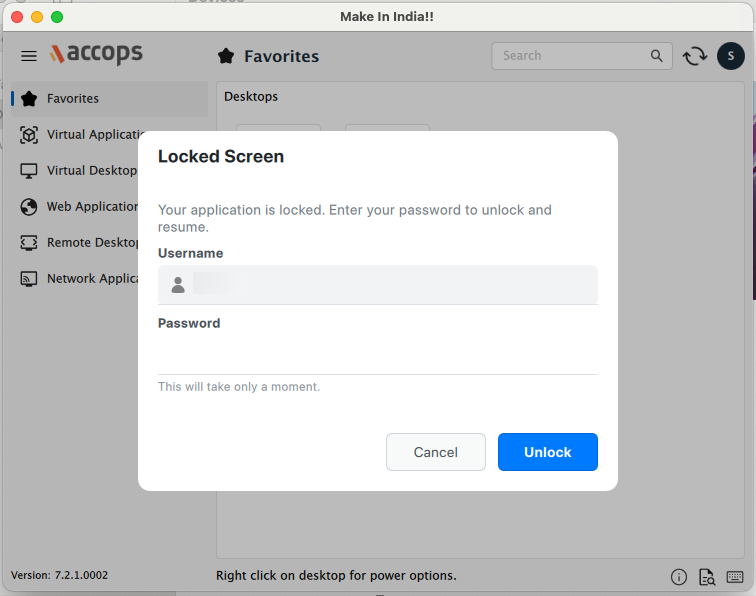

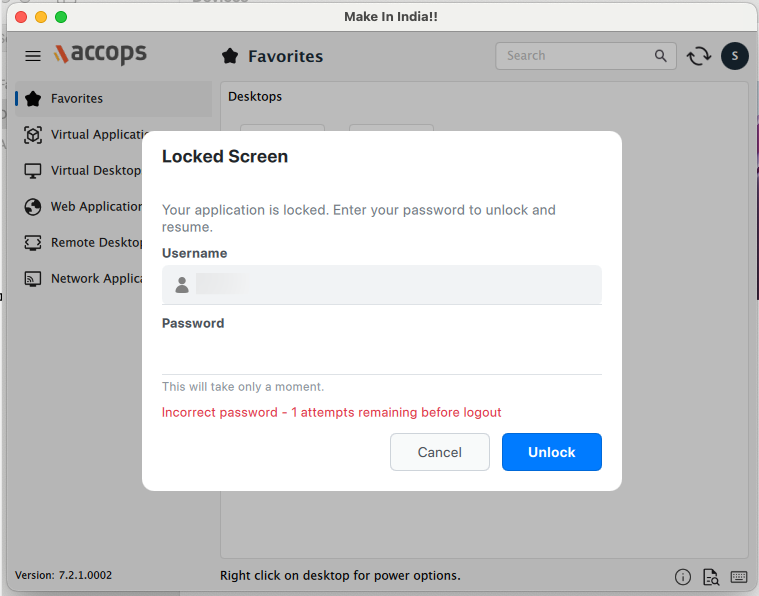

On application launch while locked, the client prompts for password-based re-authentication.

When the application launches while locked, users are prompted to re-authenticate with their password before regaining access.

Retry and Logout Policy

On an incorrect password entry, an error message is displayed showing the number of remaining attempts.
After 3 consecutive failed attempts, the client session will be automatically logged out.

HySecure Gateway Configuration

Configure the following flags in globalclientsetting.js on the HySecure Gateway:

Tag	Description
`ASK_REAUTH_ON_LOCK_OR_IDLETIME = true`	Requires re-authentication when a session is locked or becomes idle. It is recommended to Enable (true) for environments with sensitive data or shared workstations.
`REAUTH_IDLETIME_INTERVAL = <seconds>`	Defines the idle threshold (in seconds) before a re-authentication prompt is triggered. Suggested values: `300` (high security), `900` (standard), `1800` (low disruption).
Maximum Retry Attempts	Defaults to 3. This is the maximum number of consecutive failed authentication attempts before the user is logged out.

Compatibility and Limitations

VDI lock detection is protocol-dependent
- VDI lock detection (i.e., the gateway knowing when a remote session is locked on the endpoint) only works with protocols that support the Cmdex virtual channel, such as Native Protocol.
- If a protocol does not support Cmdex, the gateway cannot detect VDI lock state and therefore cannot trigger lock-specific re-authentication logic.
Protocols that do NOT support VDI lock detection
- Protocols such as Windows App do not support the Cmdex virtual channel.
- For these protocols:
  - The gateway cannot detect when the VDI session is locked.
  - Therefore, VDI lock-based re-authentication is not enforced.
What is enforced for non-Cmdex protocols (e.g., Windows App)
- For protocols without VDI lock detection, the gateway enforces only:
  1. Endpoint Lock
    - If the local endpoint device is locked (e.g., the user locks their macOS machine), the gateway can enforce re-authentication in response to that lock event.
    - This is independent of VDI session lock state; it relies on endpoint-level signals rather than Cmdex.
  2. Idle Timeout
    - If the user is inactive for the duration defined by REAUTH_IDLETIME_INTERVAL, the gateway triggers a re-authentication prompt.
    - This works regardless of whether the protocol supports Cmdex or VDI lock detection.
Practical implications for configuration
- When ASK_REAUTH_ON_LOCK_OR_IDLETIME = true:
  - For Cmdex-supporting protocols: re-authentication is triggered on VDI lock and on idle timeout.
  - For non-Cmdex protocols (e.g., Windows App): re-authentication is triggered only on:
    - Endpoint lock, and
    - Idle timeout.
  - The lock on the VDI session itself is not detected, so that specific scenario is not enforced.

JioSphere Browser Integration

JioSphere Browser is now integrated with Accops Workspace Client and HySecure Gateway, providing secure, policy-driven access to enterprise web applications.

Built on the Chromium engine, JioSphere supports centralized browser policy management through HySecure Gateway and Chrome Enterprise Policies, enabling administrators to enforce security, DLP, browsing controls, and session management from a single location.

Key Features

Web application Launch via JioSphere
JioSphere browser policy management and delivery from the gateway
JioSphere Exit on logout with notification
Cleanup JioSphere History on login and logout - tag-based
Cleanup JioSphere CACHE on login and logout - tag-based
Encrypted Policy Support for JioSphere - POC on Chromium
Restrict compatible JioSphere launch with the minimum supported browser version

Quick Configuration Guide

JioSphere Usage & Client Benefits

JioSphere is an enterprise-grade browser integrated with Accops HySecure Gateway and Accops Workspace client that enables secure access to enterprise web applications. It provides a secure, policy-driven browsing experience using Chromium and Chrome Enterprise Policies, fully controlled through centralized gateway configuration.

Key Highlights
- Built on Chromium engine → compatible with modern web applications
- Supports Chrome Enterprise Policies → centralized browser control
- Provides secure enterprise browsing
- Supports DLP and browser isolation features
- Enables:
  - Restricted clipboard operations
  - Controlled downloads
  - Secure session handling
  - Browser lockdown configurations
  - Controlled URL editing
  - Context menu restrictions
Benefits for End Users
- Seamless access to enterprise web applications
- Enhanced enterprise data security
- No dependency on local browser configurations
- Centralized policy enforcement from the gateway
- Consistent browsing experience across devices

Browser Configuration Policies

Browser configuration policies control browser behavior, security settings, DLP restrictions, download behavior, password management, clipboard isolation, and secure browsing enforcement.
These policies can be configured from:
HySecure Gateway → Policies → Browser Configurations

Supported Browser Configuration Policies

Policy Tag	Values	Description
IncognitoModeAvailability	0	Incognito mode enabled
	1	Incognito mode disabled
	2	Incognito mode forced
PromptForDownloadLocation	true	Always ask where to save downloads
	false	Save to the default location without asking
SavingBrowserHistoryDisabled	true	Disable saving browser history
	false	Enable saving browser history
DownloadRestrictions	0	No special download restrictions
	1	Block dangerous downloads
	2	Block potentially dangerous downloads
	3	Block all downloads
	4	Block malicious downloads
PasswordManagerEnabled	true	Enable the built-in password manager
	false	Disable the built-in password manager
AutofillEnabled	true	Enable form autofill
	false	Disable form autofill
SphereDisableContextMenu	true	Disable right-click context menu popup on webpages
	false	Enable right-click context menu popup on webpages
SphereReadOnlyUrl	0	The URL bar is editable by the user
	1	URL bar read-only (user cannot edit address)
SphereDisablePaste	0	Paste enabled everywhere
	1	Paste disabled everywhere (Strict mode)
	2	Paste allowed only within the same tab (Intra-tab Isolation)
	3	Paste allowed only within the same window, including other tabs in the same window (Intra- window Isolation)
SphereDisableCopy	0	Copy enabled everywhere
	1	Copy disabled everywhere (Strict mode)
	2	Copy allowed only within the same tab (Intra-tab Isolation)
	3	Copy allowed only within the same window, including other tabs in the same window (Intra-window Isolation)

Chrome Enterprise Policies Overview

JioSphere uses Chrome Enterprise Policies internally to enforce browser configurations.

Supported Policy Types

Type	Description	Example
String	Text values	"DownloadDirectory"
Integer	Numeric values	"DownloadRestrictions": 3
Boolean	True/False flags	"PrintingEnabled": false
List of Strings	Array values	"ClipboardAllowedForUrls": []

Preparing Chrome Policies (JSON Format)

Step 1: Browse Policies using the Chrome Enterprise Policy List. Then search for required policies and note the following items:

Policy name
Type
Supported value

Step 2: Create JSON

{
"NewTabPageLocation": "https://outlook.com",
"ShowHomeButton": false,
"DownloadRestrictions": 3,
"DownloadDirectory": "/Users/Shared/edc",
"PrintingEnabled": false,
"DeveloperToolsAvailability": 2,
"ScreenCaptureAllowed": false,
"DefaultClipboardSetting": 2,
"ClipboardAllowedForUrls": [
"https://accops.com",
"https://*.accops.com"
]
}

Convert JSON to Base64
1. Open: Base64 Encode Tool
2. Paste JSON
3. Click Encode
4. Copy Base64 output

Browser Control Configuration for Client

Browser control configurations are client-side enforcement settings used for browser launch handling, cache cleanup, history cleanup, logout behavior, and browser version enforcement.

These configurations can be added in:

default_client_settings.js
HySecure Gateway → Policies → Client Profiles

Supported Client Configuration Tags

TAG	TYPE	USAGE
SPHERE_POLICY_B64	STRING	Base64 encoded browser policy
SPHERE_FORCE_LAUNCH	BOOL	Force web application launch using JioSphere
SPHERE_EXIT_ON_LOGOUT	BOOL	Exit JioSphere on Workspace client logout
SPHERE_CACHE_CLEANUP_ON_LOGOUT	BOOL	Cleanup JioSphere cache on Workspace client logout
SPHERE_CACHE_CLEANUP_ON_LOGIN	BOOL	Cleanup JioSphere cache on Workspace client login
SPHERE_HISTORY_CLEANUP_ON_LOGOUT	BOOL	Cleanup JioSphere browsing history on Workspace client logout
SPHERE_HISTORY_CLEANUP_ON_LOGIN	BOOL	Cleanup JioSphere browsing history on Workspace client login
SPHERE_MIN_VER_REQ_MAC	STRING	Minimum JioSphere version required for macOS; blocks launch if version is not valid
SPHERE_MIN_VER_REQ_RHEL	STRING	Minimum JioSphere version required for RHEL; blocks launch if the version is not valid
SPHERE_MIN_VER_REQ_UBUNTU	STRING	Minimum JioSphere version required for Ubuntu; blocks launch if version is not valid
SPHERE_MIN_VER_REQ_WINDOWS	STRING	Minimum JioSphere version required for Windows; blocks launch if version is not valid
FORCE_EXIT_BROWSERS_ONLOGOUT	BOOL	Force quit Chrome, Safari, and JioSphere after Workspace client logout

Prerequisites
- Mac client version 7.2.1.1042 or above
- JioSphere integrated installer (JioSphere version-142.0.7444.165)
- Proper gateway configuration
- Backend access to configure browser policies
- HySecure Gateway browser configuration enabled
Post-Login Behavior

After successful login:
- Web applications launch automatically via JioSphere
- Enterprise browser policies are applied automatically
- DLP restrictions become active
- Clipboard and download restrictions are enforced
- Session handling follows configured gateway policies

Runtime Behavior

Feature	Behavior
Policy Enforcement	Chrome Enterprise policies applied dynamically
Cache Handling	Cleared based on configured settings
History Handling	Managed according to login/logout cleanup settings
Exit Handling	Browser closes automatically on logout (if enabled)
Version Enforcement	Access is blocked if the minimum version requirement is not met
Clipboard Isolation	Copy/Paste is controlled based on the DLP policy
Download Control	Download restrictions enforced per policy

Verification of Applied Policies

Steps to verify that Chrome Enterprise policies are correctly applied in JioSphere:
1. Open JioSphere browser
2. Navigate to: jiosphere://policy/
3. Press Enter
Expected Result: A policy page will be displayed showing all active browser policies.

Verify the following:
- Policy names
- Applied values
- Policy source
- Effective enforcement status

Native Protocol Upgrade

The Workspace macOS Client now includes an upgraded native protocol stack designed to enhance virtual desktop performance, multimedia redirection, and collaboration experiences.

The upgraded protocol delivers improved RDP functionality and support for modern unified communications platforms.

Audio Redirection: Audio support for voice/video calls.
Webcam and Camera Redirection: Webcam/camera redirection for video conferencing (Teams, Google Meet, Zoom, Webex).
Multi-Monitor Support: Users can extend virtual desktop sessions across multiple displays.
Enhanced RDP Performance: Improved RDP protocol support compared to older versions
Screen Capture Protection: Screenshot and screen-sharing block of the RDP window

Connection profile for Workspace macOS Client with Native Protocol

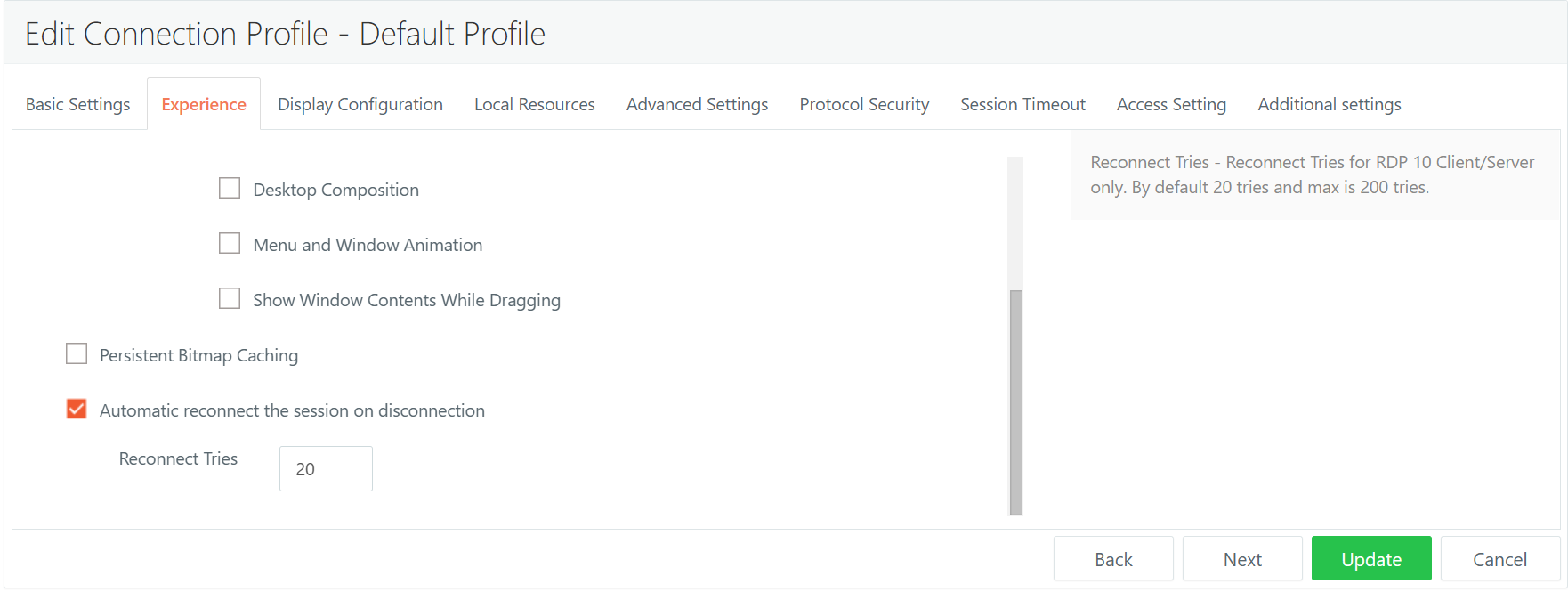

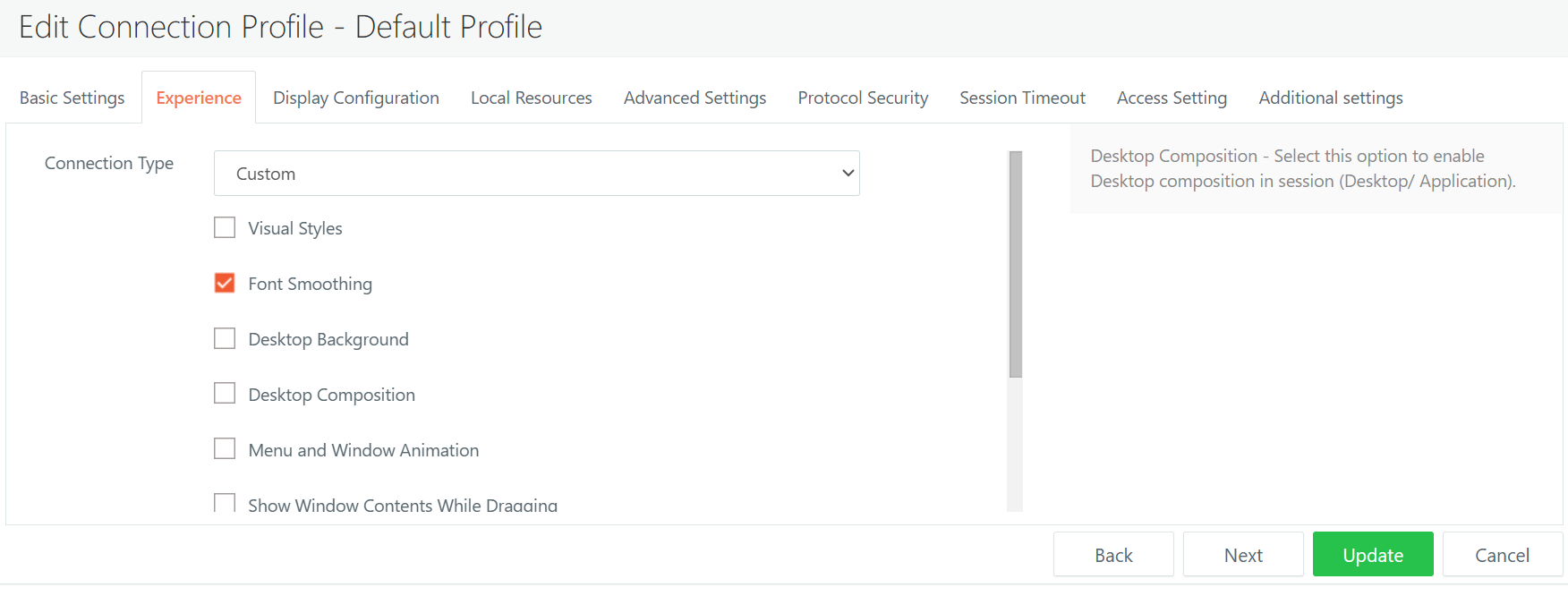

Experience

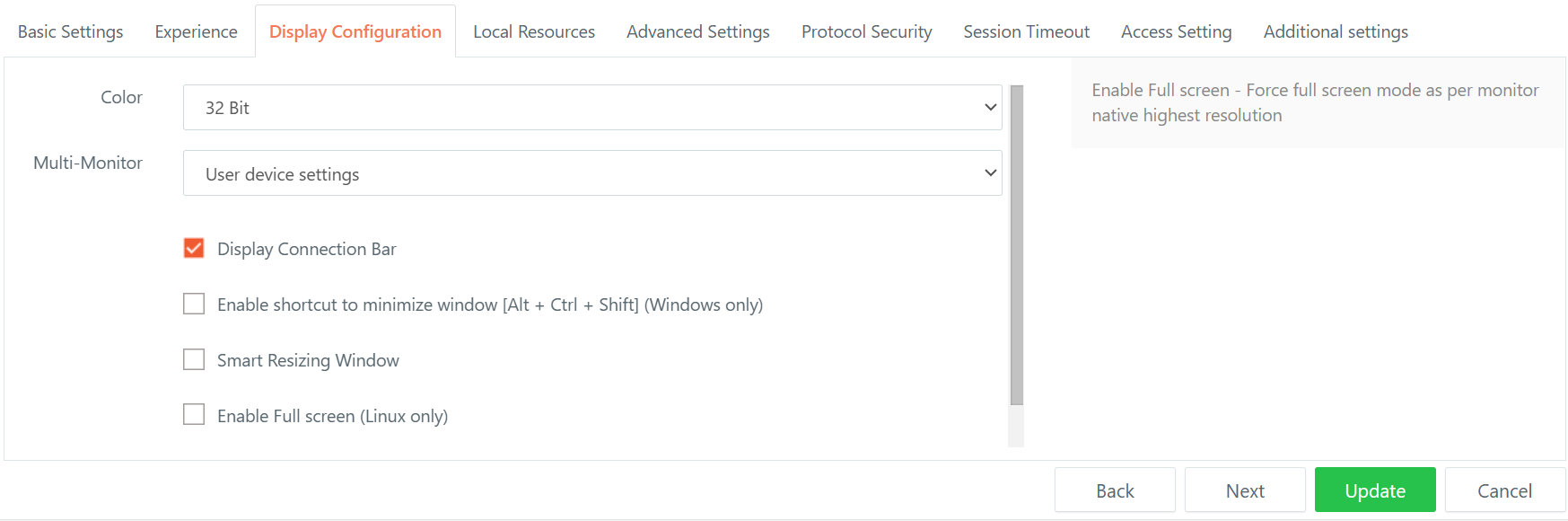

Display Settings

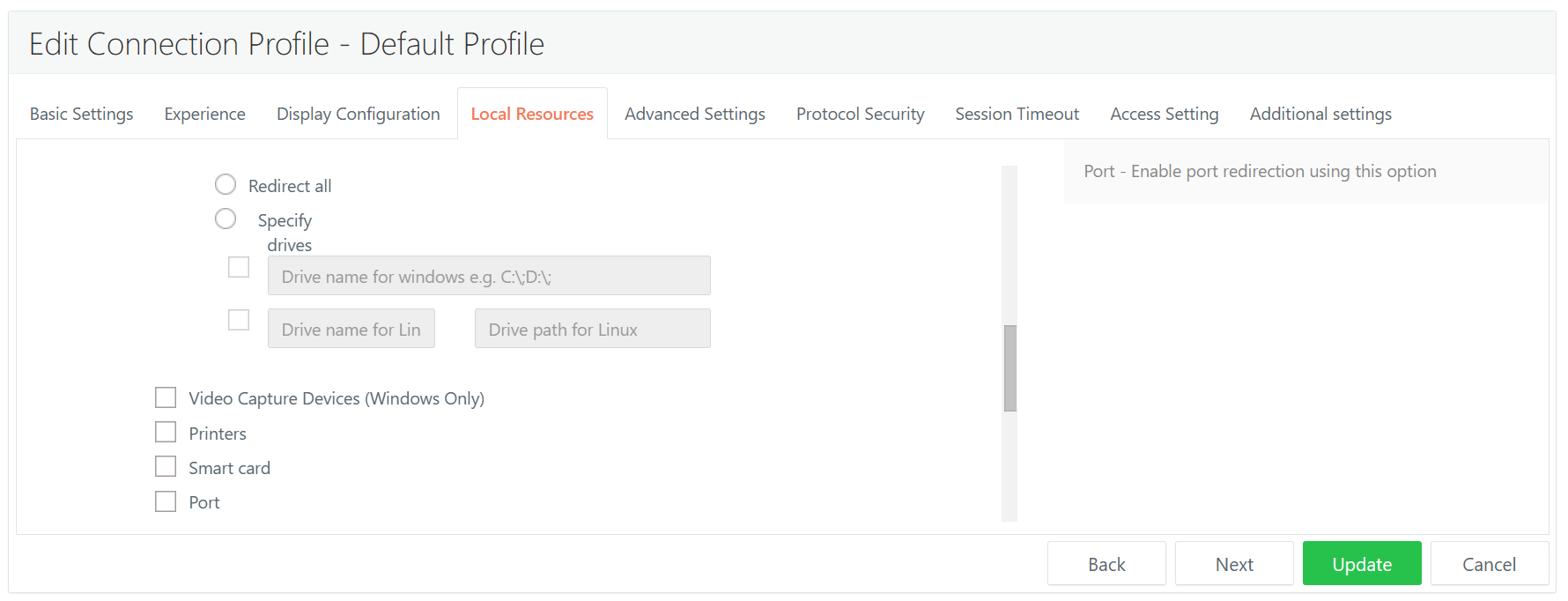

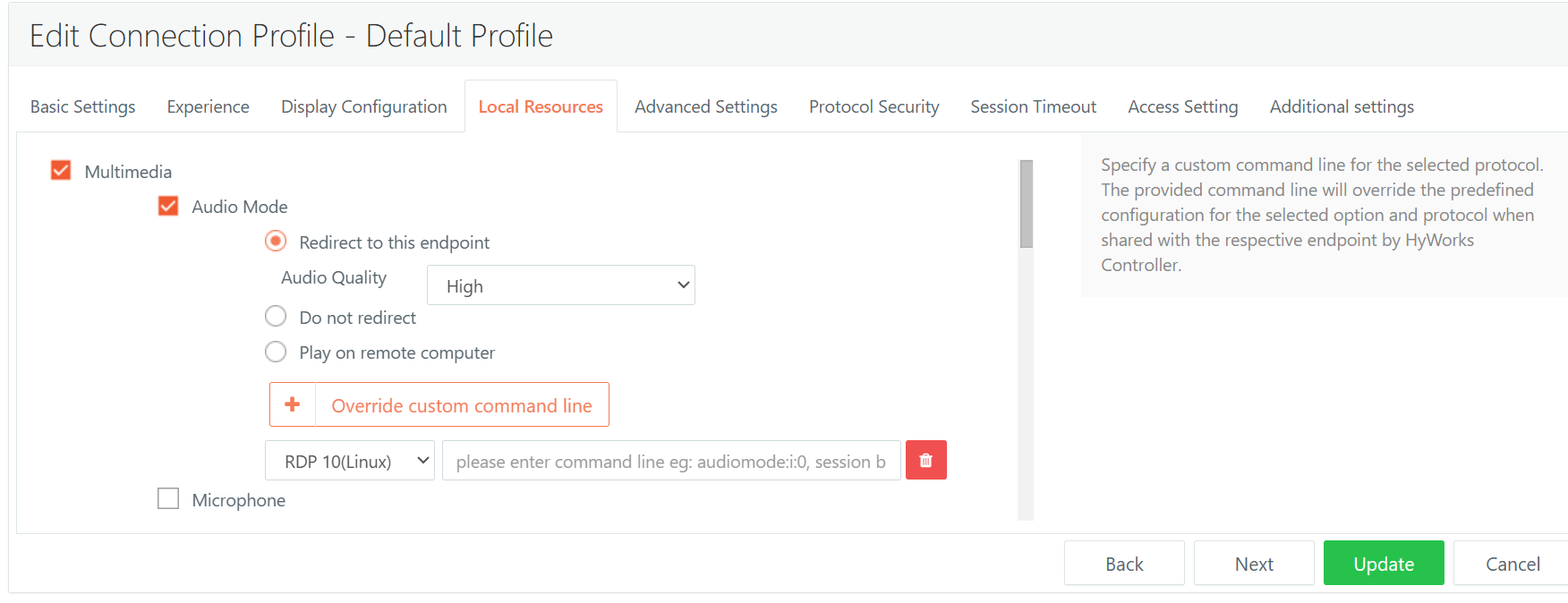

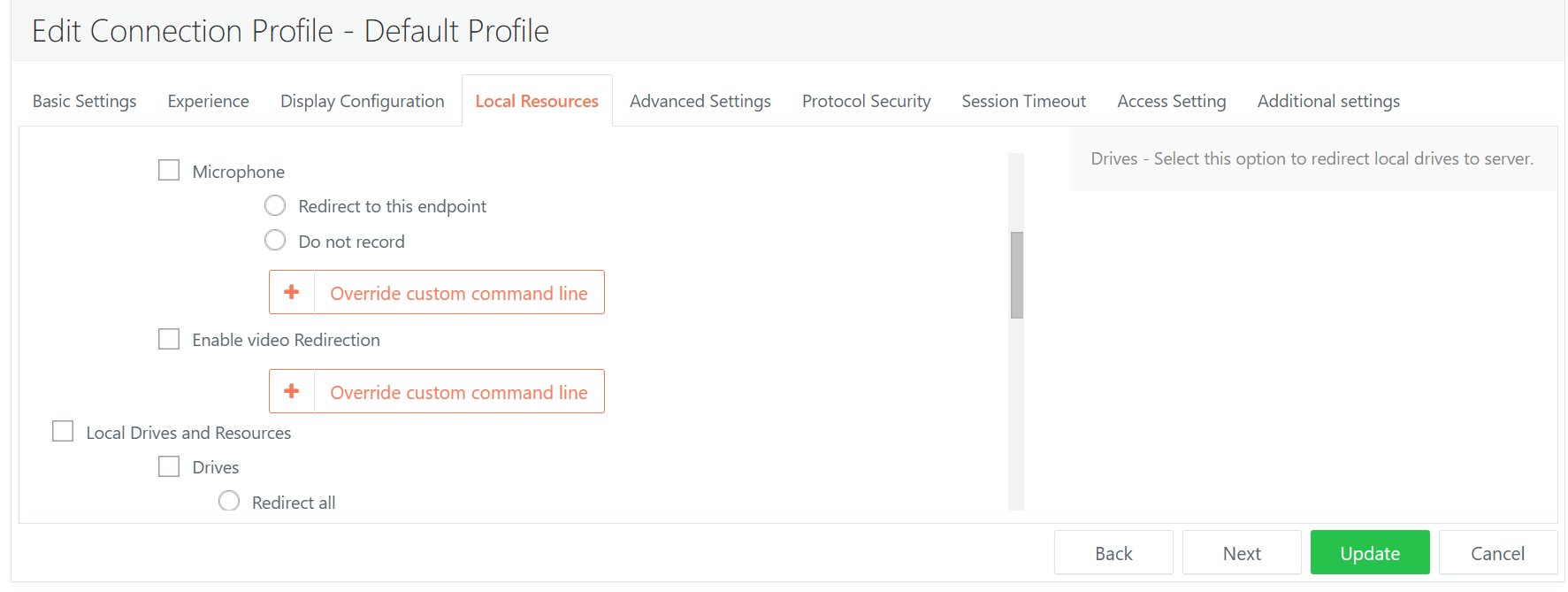

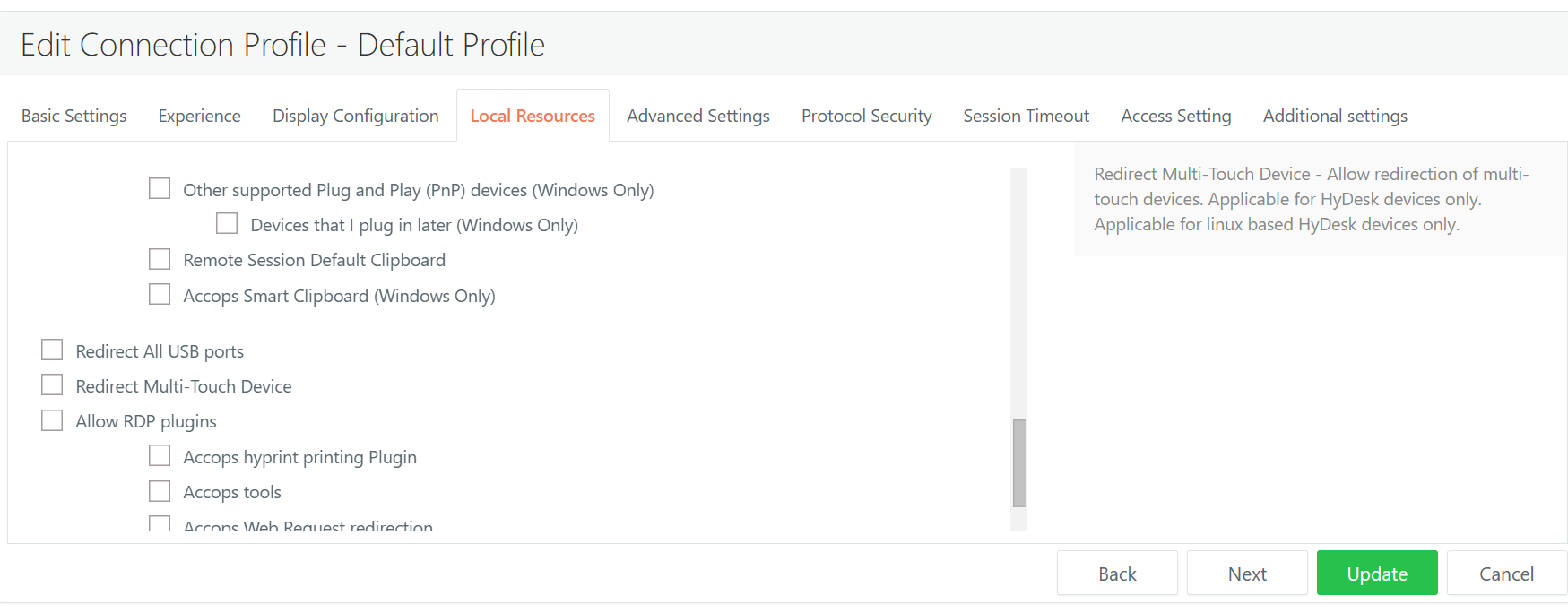

Local Resources

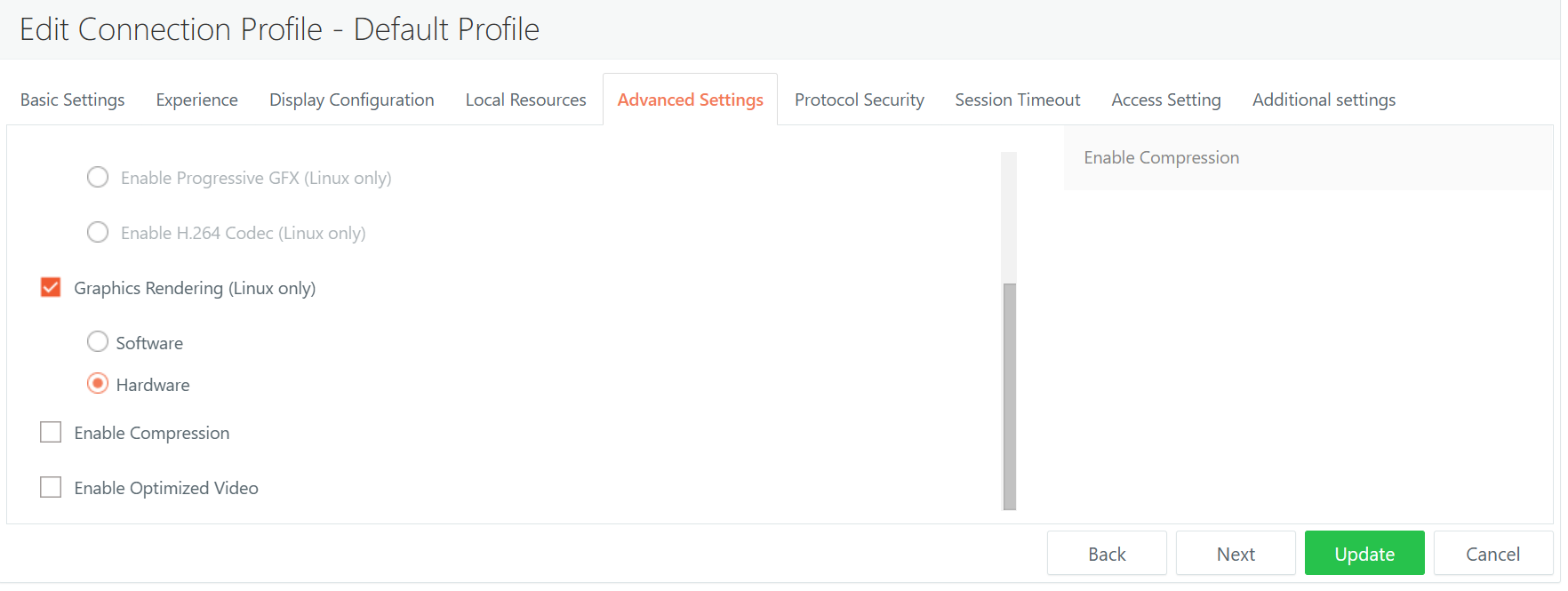

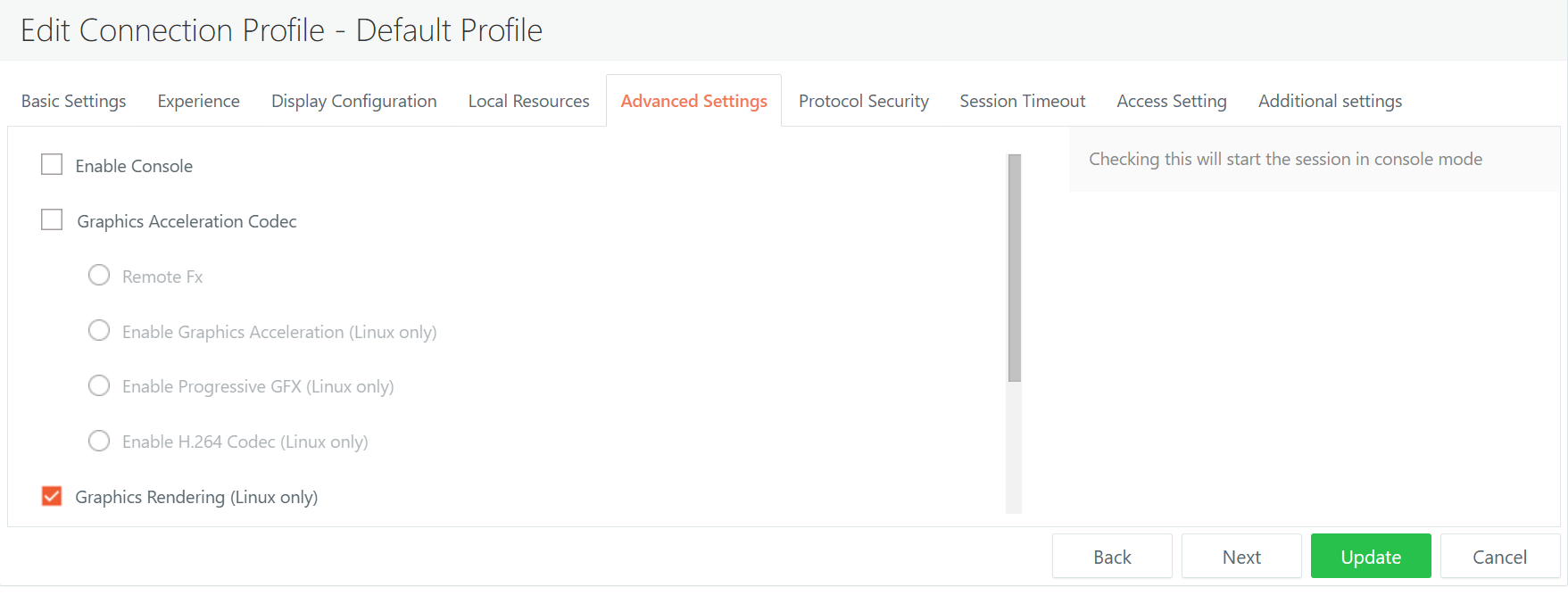

Advanced Settings

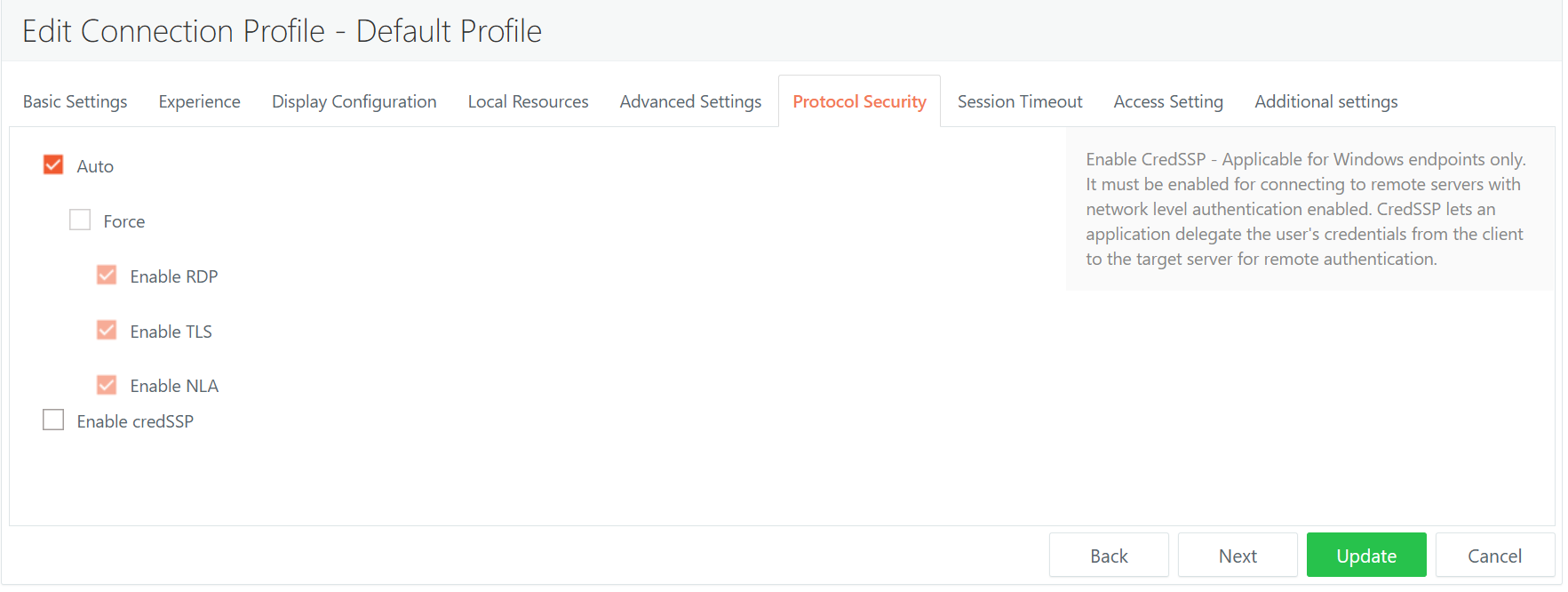

Protocol Security

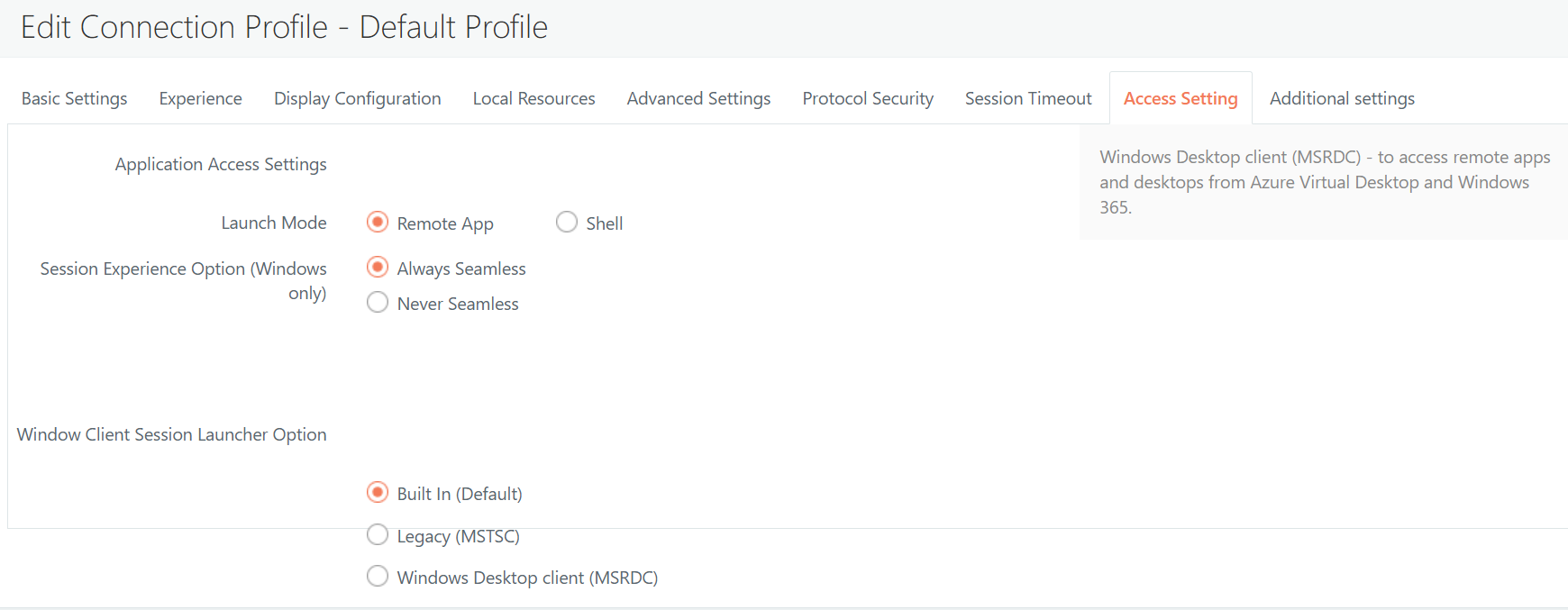

Access Setting

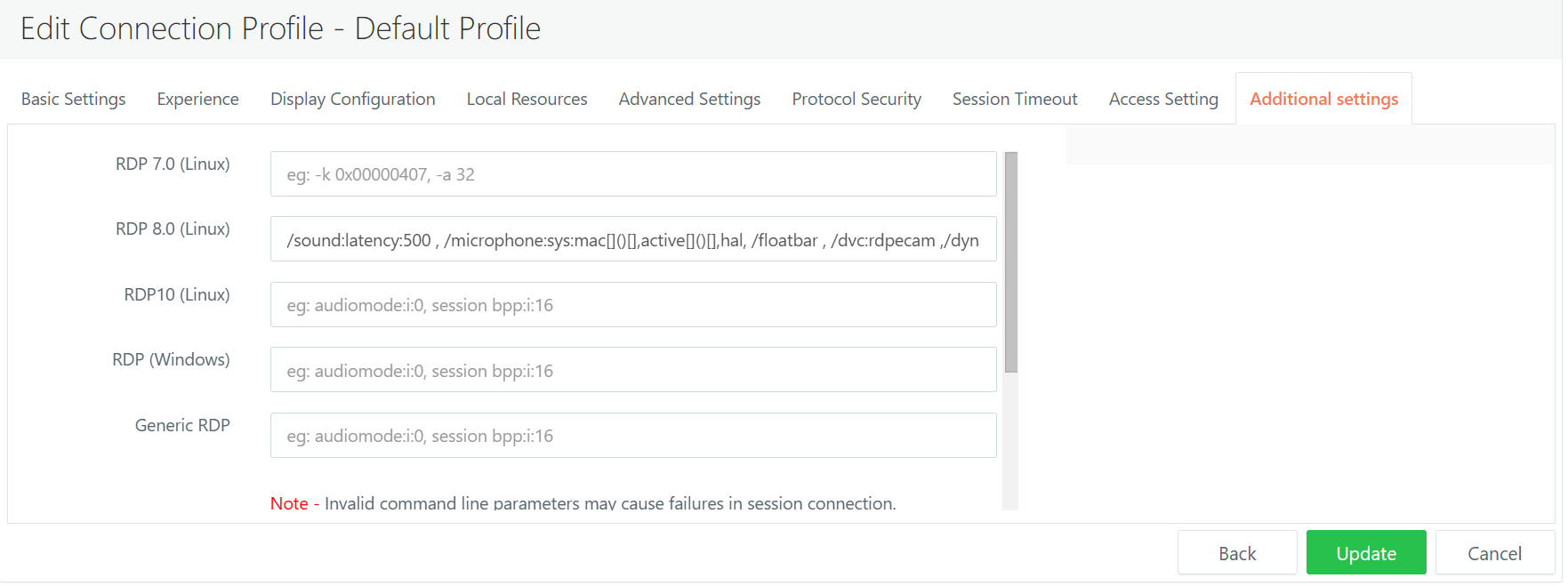

Additional Settings

Command Parameters

Command parameters for RDP 8.0 on Linux for the Workspace macOS Client:

/sound:latency:500, /microphone:sys:mac[]()[],active[]()[],hal, /floatbar, /dvc:rdpecam, /dynamic-resolution, /vc:hyprint, /gfx:AVC444[]()[],progressive:on[]()[],thin-client:off[]()[],small-cache:off

Command parameters if the user wants to use multiple monitors,/multimon should be passed.

For example:

/sound:latency:500 , /microphone:sys:mac[]()[],active[]()[],hal, /floatbar, /dvc:rdpecam ,/dynamic-resolution, /vc:hyprint, /gfx:AVC444[]()[],progressive:on[]()[],thin-client:off[]()[],small-cache:off, /multimon
