Prerequisites

Platform Support

For ISO Installation

  • VMWare ESXi (ESXi v 6.7 & above)

  • Nutanix

For Offline script installation

  • VMWare ESXi (ESXi v 6.7 & above)

  • Hyper -- V

  • Nutanix

  • Proxmox

  • Azure server

  • AWS

Port Requirements

Port Source Destination Protocol Type
9201 HySecure ARS TCP Unidirectional
9200 HyWorks ARS TCP Unidirectional
9200 VDI/SHD ARS TCP Unidirectional
5044 HySecure ARS TCP Unidirectional
514 HyWorks ARS UDP Unidirectional
514 VDI/SHD ARS UDP Unidirectional
9201 HySecure/HyWorks/VDI/SHD ARS TCP Unidirectional

Modules used

  • Opensearch

  • Opensearch-dashboards

  • Logstash

  • Email Alerting

  • Email Reporting

  • LDAP

  • Elasticdump

  • HA

  • Auto Log Cleanup

  • Syslog output

  • Roles/User based access

Log shippers Details

  • HySecure: Filebeat and Metricbeat

  • HyWorks: Metricbeat

Filebeat: User Activity Logs

Metricbeat: System Resource Utilization Logs

Windows SHD and VDI version detail support

  • SHD RDP access with admin privileges

  • Controller Access with ADMIN privileges

  • Controller Version: 3.4 SP2 LR1 HF1.1

  • HyWorks DVM Tools: v3.4.0.820

  • Windows Session Host Server: v3.4.0.18146

Linux SHD OS and version detail

  • Ubuntu 24.4

  • Linux package v3.6.0.134

  • DVM Tools v3.6.0.368

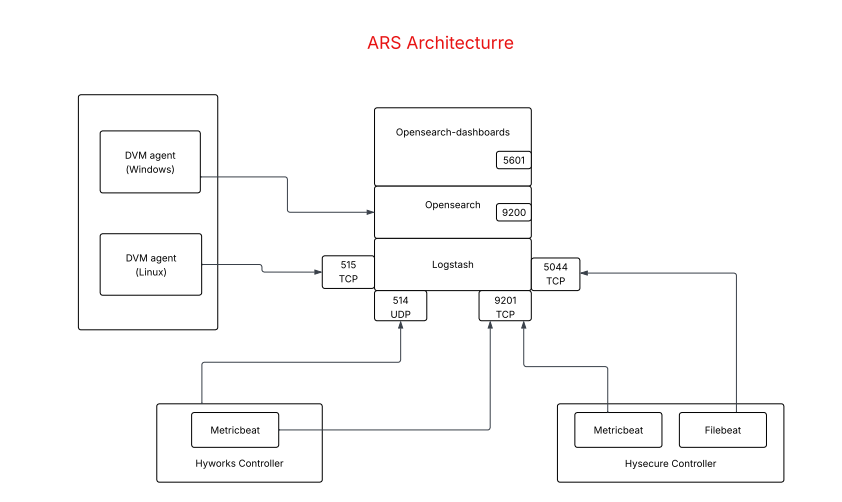

Architecture

Sizing

Recommended for: 3-month retention period (Single Node ARS)

User CPU RAM HDD
100 4 8 500
500 8 16 1 TB
1000 8 32 2 TB

VM Configuration

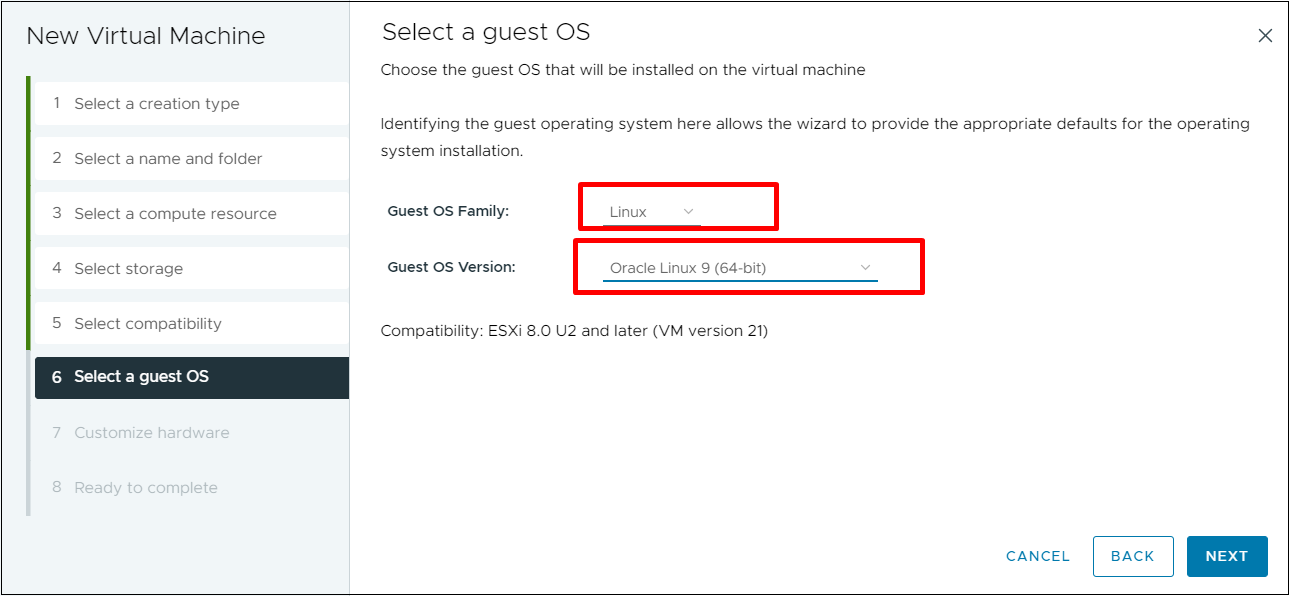

For VMWare ESXi 6.7 & above

  • Compatibility - ESXi 6.7 virtual machine (or the highest version available)

  • Guest OS Family - Linux

  • Guest OS version - Oracle Linux 9 (64-bit)

IP Address and Admin access are required for the following components:

  • HySecure Gateways

  • HyWorks Controllers

  • Reservation Management System Controller (RMS)

  • The IP address for the ARS server (This IP should be reachable to the applicable HyWorks, HySecure, or RMS instances as applicable above)

  • Case-sensitive hostnames for HySecure gateways, HyWorks Controllers, and RMS Controllers

  • Putty

  • WinSCP

  • SMTP Server detail (Optional) For email alerts

  • Email credentials to send email alerts for CPU, Memory, and Disk usage (Optional)

  • DNS Server IPs

  • HyWorks Identity value for Production HyWorks Cluster (Accessible from HyWorks Management Console > Host Management > Syslog Config)

  • HyWorks Identity value for RMS Cluster (Optional) (Accessible from HyWorks Management Console > Host Management > Syslog Config)

  • Retention Period for log data (Optional)

  • Syslog Server Details (Optional) to send a copy of logs to Syslog
